| Manufacturer | |

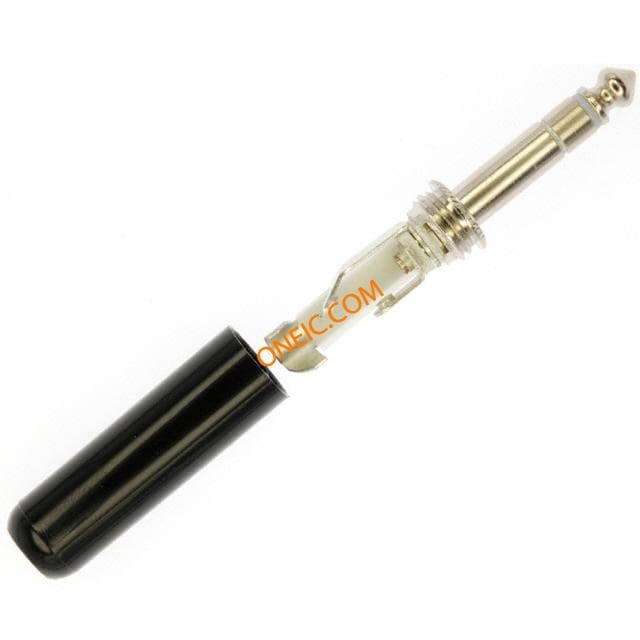

| Description | Phone Connectors EXTENSION JAX Conn 1/4" Extension Jack F 3 POS Screw ST Cable Mount 3 Terminal 1 Port JACK HANDLE 3-COND BLACK CONNECTOR, RCA/PHONO, JACK, 3POS Jack,Phone;Panel;3;NickelPlatedCopperAlloy |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 44 Days | Subcategory | Connector Audio and Video |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Signal Lines | Stereo | Switch Function/Rating | Not Switched |
Mechanical
| Color | :Black | Weight | 0.018 |
| Diameter | 19.05 mm | Shielding | Unshielded |
| Termination | Screw | Housing Color | Black |
| Mounting Type | Cable Mount | Connector Type | Phone Jack |
| Contact Finish | Nickel | Mounting Style | Cable |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 54.76 mm |
| Termination Style | Screw | Color - Connectors | :Black |
| Diameter - Outside | :6.35mm | Number of Contacts | 3 |
| Contact Termination | :Screw | Color - Actuator/Cap | Silver |
| Pin Size - Below Flange | :6.35mm | Plug/Mating Plug Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Contact Material - Plating | Nickel | ||
Product Info
| Type | 1/4" Extension Jack | Gender | F |
| Series | :80 | Number of Ports | 1 |
| Internal Switch(s) | Does Not Contain Switch | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
Environmental
| Operating Temperature | -55C to 125C | Operating Temperature - Junction | -55C |
