点击放大查看

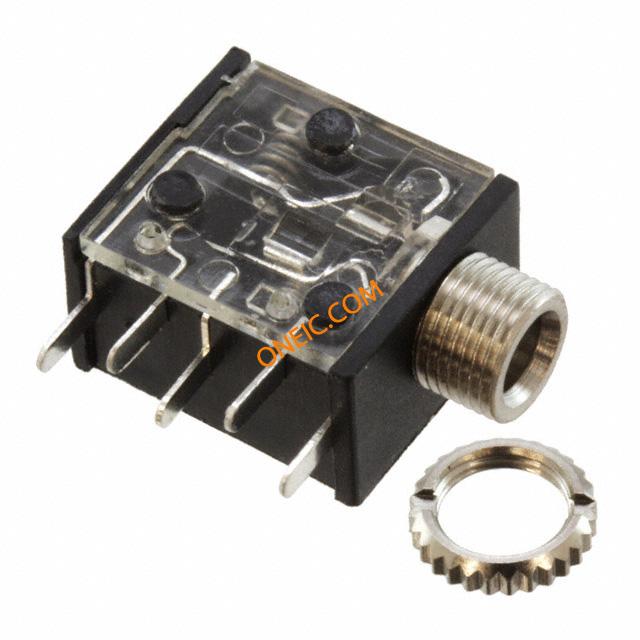

35RAPC4BV4
| Manufacturer | |
| Description | Phone Connectors 3.5MM VERT STEREO JK Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port STEREO JACK 3.5MM SGL MONO Conn Audio F 5 POS Solder RA Thru-Hole 5Terminal 1Port CONNECTOR, RCA/PHONO, JACK, 3WAY 3.5MMPCverticalmountJack,mono,threadedbushing |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Subcategory | Connector Audio and Video |
| Product Category | Phone Connectors | Standard Package | 1 |
| Factory Pack Quantity | 560 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Signal Lines | Stereo | Voltage Rating | 500 V |
| Voltage - Supply | 3.5 mm, 1/8 in | Switch Function/Rating | Switched |
Mechanical
| Color | Black | Depth | 18.5 |
| Height | 12.3 | Weight | 0.002 |
| Shielding | Unshielded | Orientation | Vertical |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Phone Jack |
| Contact Finish | Tin Alloy | Mounting Style | Through Hole |
| Material - Body | :Plastic | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 8.1 |
| Termination Style | Through Hole | Color - Connectors | :Black |
| Number of Contacts | 5 | Contact Termination | :Solder |
| Color - Actuator/Cap | Silver | Pin Size - Below Flange | :3.5mm |
| Plug/Mating Plug Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Contact Material - Plating | Silver |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Audio | Gender | F |
| Series | 35RAPC | Features | Thread Lock |
| Number of Ports | 1 | Internal Switch(s) | Two Switches |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts | ||
