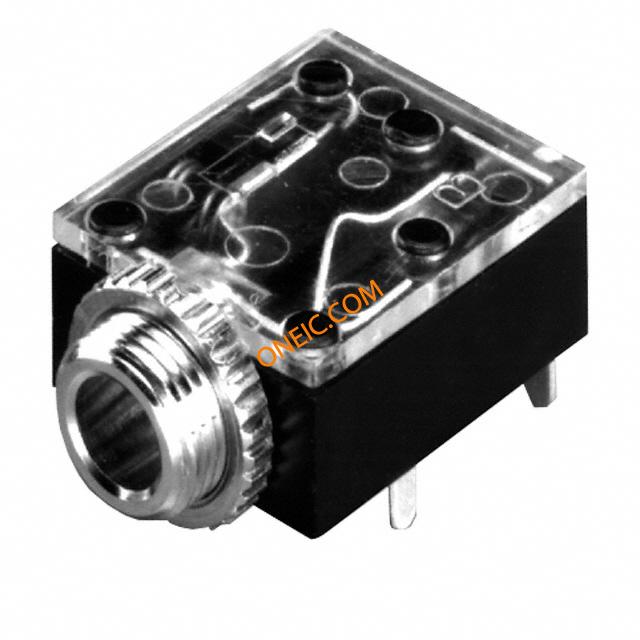

35RAPC4BH3
| Manufacturer | |
| Description | Phone Connectors 3.5MM STEREO JACK Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK STEREO 3.5MM HORIZON Conn Audio F 5 POS Solder RA Thru-Hole 5Terminal 1Port JACK, PHONO 3.5MMPChorizontalmountJack,stereo,threadedbushing |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 44 Days | Subcategory | Connector Audio and Video |
| Product Category | Phone Connectors | Standard Package | 1 |
| Factory Pack Quantity | 560 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Signal Lines | Stereo | Voltage Rating | 500 V |
| Voltage - Supply | 3.5 mm, 1/8 in | Switch Function/Rating | Switched |
Mechanical
| Color | Black | Depth | 17.5 mm |
| Height | 6 | Weight | 0.001 |
| Packaging | Bulk | Shielding | Unshielded |
| Orientation | Horizontal | Termination | Solder |
| Weight (g): | 1.70000 | Pin Diameter | :3.5mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Phone Jack | Contact Finish | Silver |
| Mounting Style | Through Hole | Material - Body | :Plastic |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 11.5 | Termination Style | Through Hole |
| Color - Connectors | :Black | Number of Contacts | 5 |
| Contact Termination | :Solder | Color - Actuator/Cap | Silver |
| Pin Size - Below Flange | :3.5mm | Plug/Mating Plug Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Contact Material - Plating | Silver | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Audio | Gender | F |
| Series | 35RAPC | Features | Thread Lock |
| Number of Ports | 1 | Internal Switch(s) | Two Switches |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts | ||
