35HDLNN
| Manufacturer | |
| Description | Phone Connectors 3.5MM LCK/STEREO PLG CONN PLUG STEREO 3.5MM LOCKING 3.5mm Locking DC Plug 3.5MMSTEREOPLUG,R Switchcraft 35HD 系列 电源电缆 , 3.5 mm Locking Plug 至 无终端接头 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SC1487 | Standard Pack | 100 |
| Product Category | Phone Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Signal Lines | Stereo | Voltage Rating | 250VAC, 140VDC |
| Voltage - Supply | 3.5 mm, 1/8 in | Current Rating (Max) | 4A |
| Switch Function/Rating | Not Switched | Contact Rating @ Voltage | 4 A |
Mechanical
| Color | Nickel | Cavity A | Straight |
| Packaging | Bulk | Shielding | Unshielded |
| Termination | Solder Eyelet(s) | 1st Connector | Male 3.5 mm Locking Stereo Plug |
| 2nd Connector | Unterminated | Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Phone Plug |
| Contact Finish | Tin | Mounting Style | Cable |
| Contact Material | Copper Alloy | Housing Material | Copper Alloy |
| Termination Style | Crimp | Number of Contacts | 3 (TRS, Stereo) |
| Color - Actuator/Cap | Silver | 1st Connector Orientation | 公 |
| Plug/Mating Plug Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Contact Material - Plating | Silver |
Product Info
| Gender | Male | Series | 35HD |
| Features | Cable Clamp | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
Environmental
| Operating Temperature | -20°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Online Document
Similar Parts

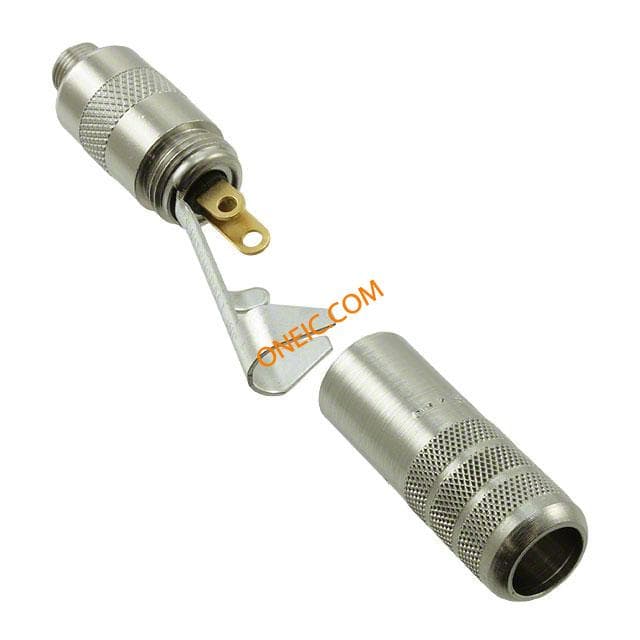

35LJNAU
Switchcraft
Phone Connectors 3.5mm Inline Jack Gold Ct. Lg Cable CONN JACK STEREO 3.5MM LOCKING
$5.5787
Details

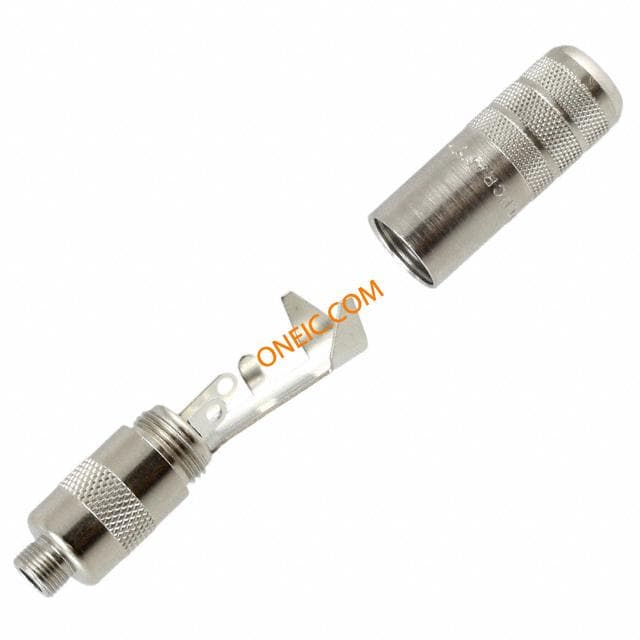

35LJNS
