35HDLBN
| Manufacturer | |
| Description | Phone Connectors 3.5mm Locking Blk Body Nickel Pin Conn 3.5MM Stereo Plug PL 3 POS ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM LOCKING 3.5MMSTEREOPLUG,R |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SC1486 | Standard Pack | 100 |
| Product Category | Phone Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Signal Lines | Stereo | Voltage Rating | 250VAC, 140VDC |
| Voltage - Supply | 3.5 mm, 1/8 in | Current Rating (Max) | 4A |
| Switch Function/Rating | Not Switched | Contact Rating @ Voltage | 4 A |
Mechanical
| Color | Black | Packaging | Bulk |
| Shielding | Unshielded | Termination | Solder Eyelet(s) |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Phone Plug | Contact Finish | Tin |
| Mounting Style | Cable | Contact Material | Copper Alloy |
| Housing Material | Copper Alloy | Termination Style | Crimp |
| Number of Contacts | 3 | Color - Actuator/Cap | Silver |
| Plug/Mating Plug Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Contact Material - Plating | Silver |
Product Info
| Type | 3.5MM Stereo Plug | Gender | PL |
| Series | 35HD | Features | Cable Clamp |
| Number of Ports | 1 | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
Environmental
| Operating Temperature | -20°C ~ 85°C | ||
Documents & Media
PDF Document
Online Document
Similar Parts

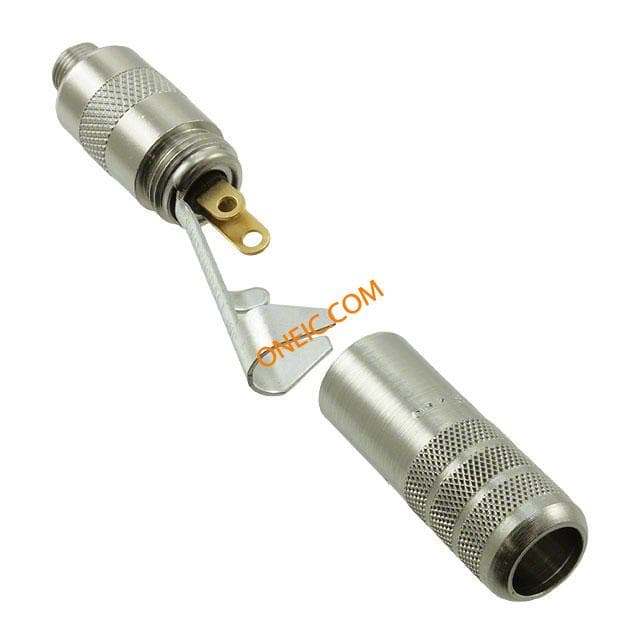

35LJNAU
Switchcraft
Phone Connectors 3.5mm Inline Jack Gold Ct. Lg Cable CONN JACK STEREO 3.5MM LOCKING
$39.8480
Details

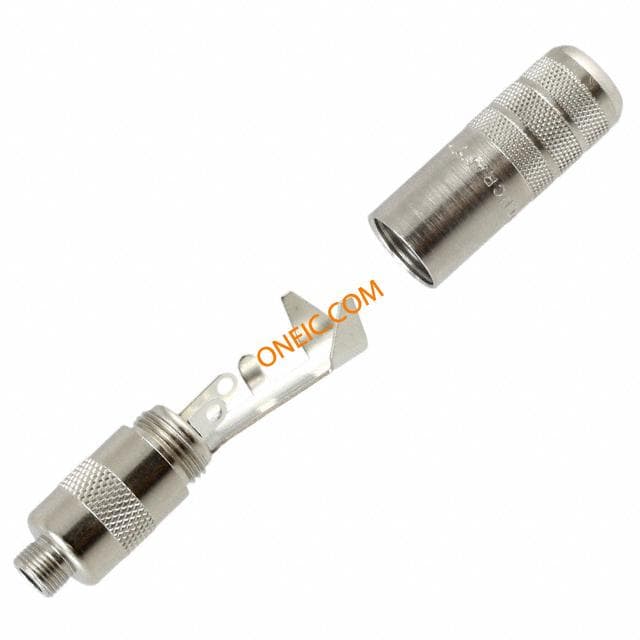

35LJNS
Switchcraft
Phone Connectors 3.5mm Inline Jack Gold Ct. Sm Cable CONN JACK STEREO 3.5MM LOCKING
$25.1600
Details

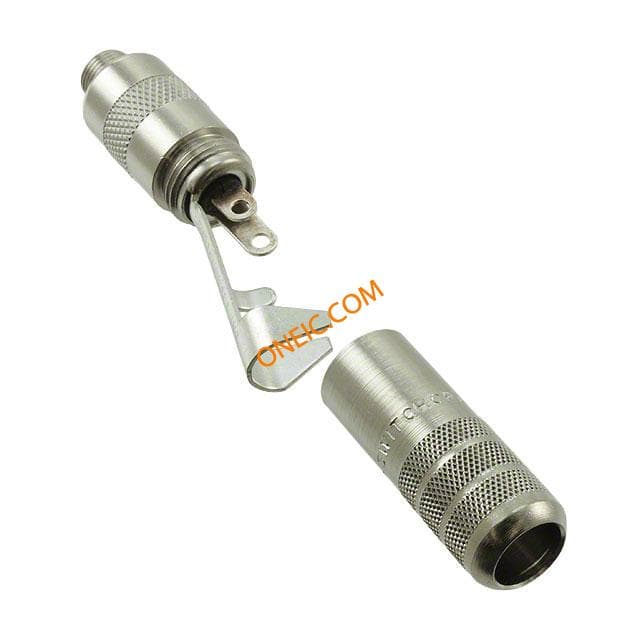

35LJN
Switchcraft
Phone Connectors 3.5mm Inline Jack Silver Ct. Lg Cable CONN JACK STEREO 3.5MM LOCKING 3.5mm Locking DC Socket Switchcraft 电源电缆 , 3.5 mm Socket Lead 至 无终端接头
$34.3400
Details

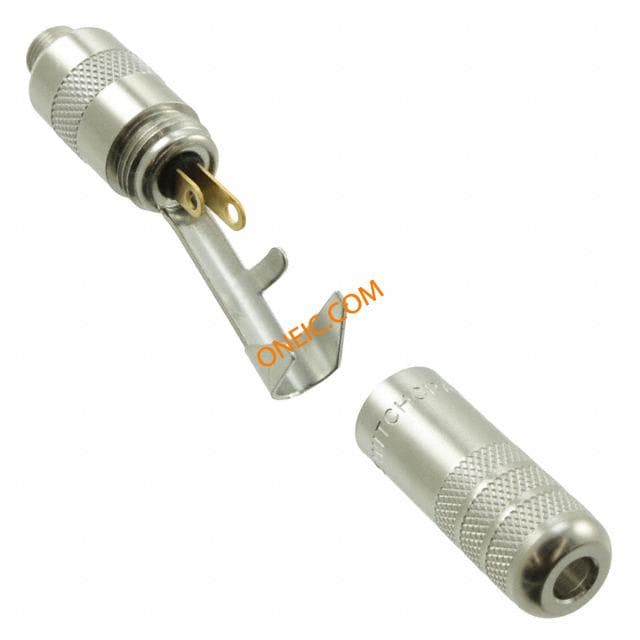

35LJNAUS
