1230
| Manufacturer | |
| Description | Phone Connectors 1/4 EXTENSION JACK Conn 1/4" Extension Jack F 3 POS Screw ST Cable Mount 3 Terminal 1 Port CONN JACK CABLE EXT 1/4" 3POS CONNECTOR, PHONE AUD, JACK, 3POS EXTENSIONJAX |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 44 Days | Tradename | Extension Jax |
| Other Names | SC1042 | Subcategory | Connector Audio and Video |
| Product Category | Phone Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Signal Lines | Stereo | Voltage - Supply | 1/4 in |
| Switch Function/Rating | Not Switched | ||
Mechanical

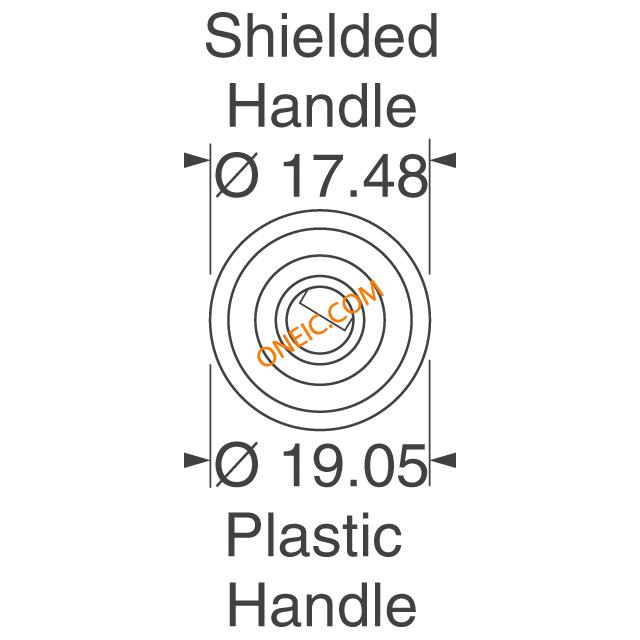

| Weight | 0.045 | Diameter | 19.05 |
| Packaging | Bulk | Shielding | Shielded |
| Orientation | Vertical | Termination | Screw |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Connector Type | Phone Jack | Contact Finish | Nickel |
| Mounting Style | Cable | Material - Body | :Metal |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |

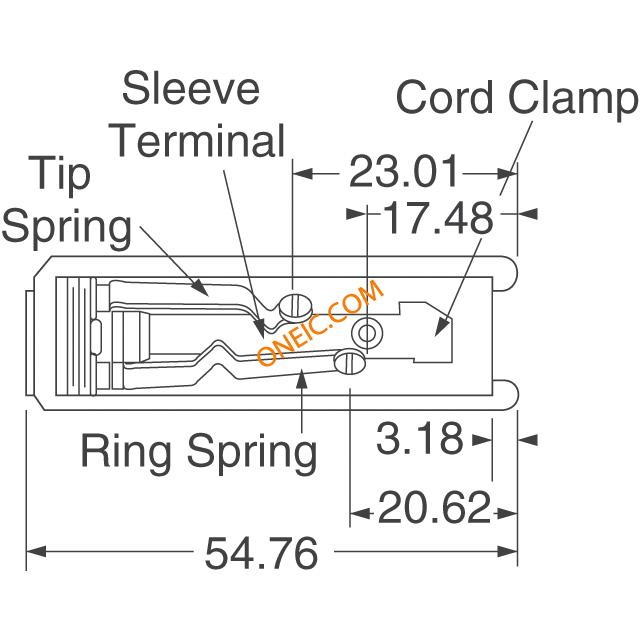

| Length - Overall | 54.76 | Termination Style | Screw |
| Number of Contacts | 3 | Contact Termination | :Screw |
| Color - Actuator/Cap | Silver | Plug/Mating Plug Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Contact Material - Plating | Nickel | 1st Connector Mounting Type | :Cable |
Product Info
| Type | 1/4" Extension Jack | Gender | F |
| Series | Extension Jax | Number of Ports | 1 |
| Internal Switch(s) | Does Not Contain Switch | Leaded Process Compatible | :Yes |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts | ||
Environmental
| Operating Temperature | 125 | ||
