EN2P5M26
| Manufacturer | |
| Description | CONN RCPT 5POS PANEL MOUNT PIN Standard Circular Connector 5-26 M S/C PANEL CON WEATHERTIGHT CONNECTORS 5-26MS/CPANELCONN,5contacts Socket; Connector: circular; EN2; male; PIN:5; external bayonet |
| Category |
Business
| Tradename | EN2 | Other Names | SC1656 |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 125VAC/DC | Current Rating (Max) | 3 A |
Mechanical
| Weight | 7 g | Packaging | Bulk |
| Shell Size | 26 | Wire Gauge | 26 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Crimp or Solder Cup | Contact Type | Pin |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Plastic |
| Locking Feature | external bayonet | Package Quantity | 1 |
| Primary Material | CircularPlasticConnector | Connector - Cable | socket |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Bayonet | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Material, Finish | Thermoplastic |
| Contact Material - Plating | gold plated | ||
Product Info
| Spg | 1 | Type | PanelPlug |
| Series | EN2 | Manufacturer | EN2Series |
| Product Type | Connectors | Adapter Series | EN2 |
| Number of Units | 1 | Output Configuration | Panel Mount, Bulkhead - Front Side Nut |
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
16295
Conxall / Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap Receptacle DUST CAP MICRO-CON-X MICRO CON-X DUST CAP DUST CAP, RUBBER DUST CAP, MINI EN3 MICROCON-XRECEPCAP Switchcraft CON X 系列 IP67 防尘盖

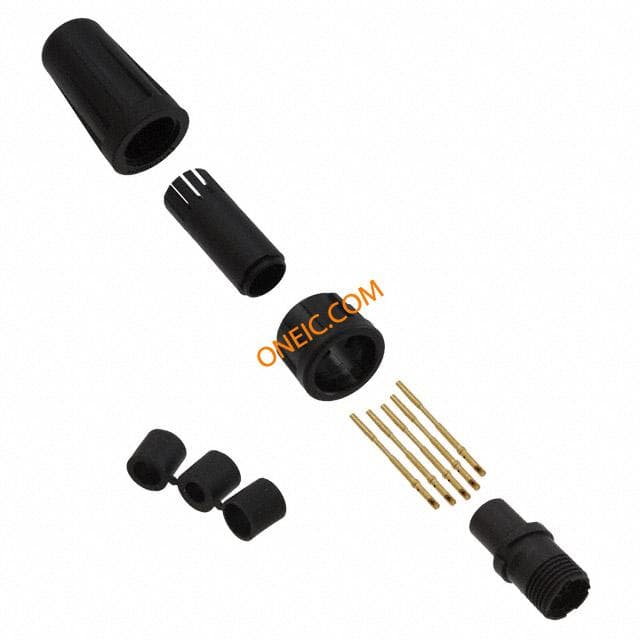

EN2C5F26G3
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26G2
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26G1
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26G3W
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet

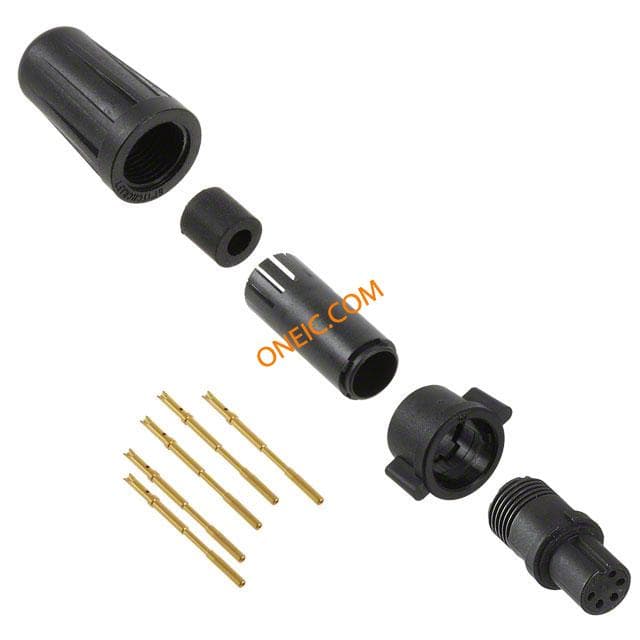

EN2C5F26G1W
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet
EN2C5F26DC
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Standard Circular Connector 5-26 F S/C CORD CON Conn Circular F 5 POS ST Cable Mount 5 Terminal 1 Port 5-26FS/CCORDCONN,5contacts Plug; Connector: circular; EN2; female; PIN:5; internal bayonet

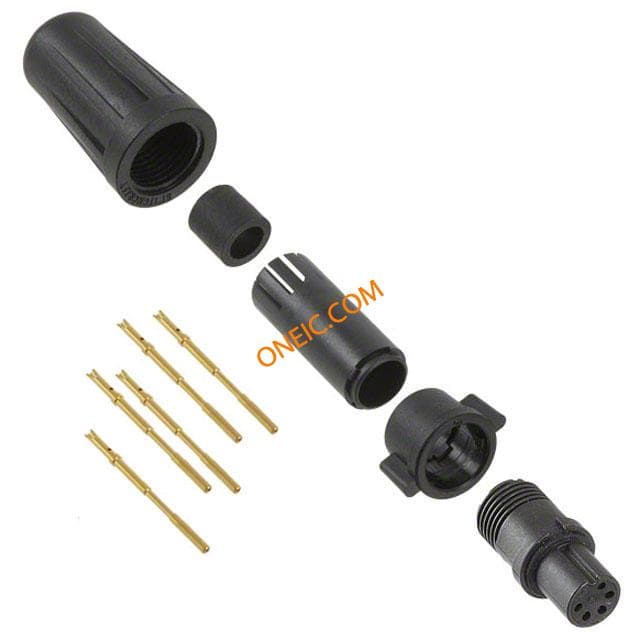

EN2C5F26G2W
Switchcraft Inc.
CONN PLUG 5POS CORD SOCKET Plug; Connector: circular; EN2; female; PIN:5; internal bayonet

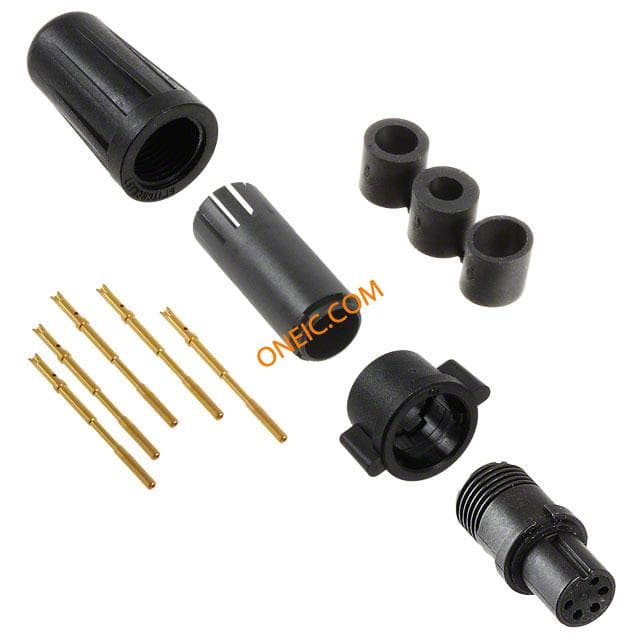

EN2C5F26DCW
