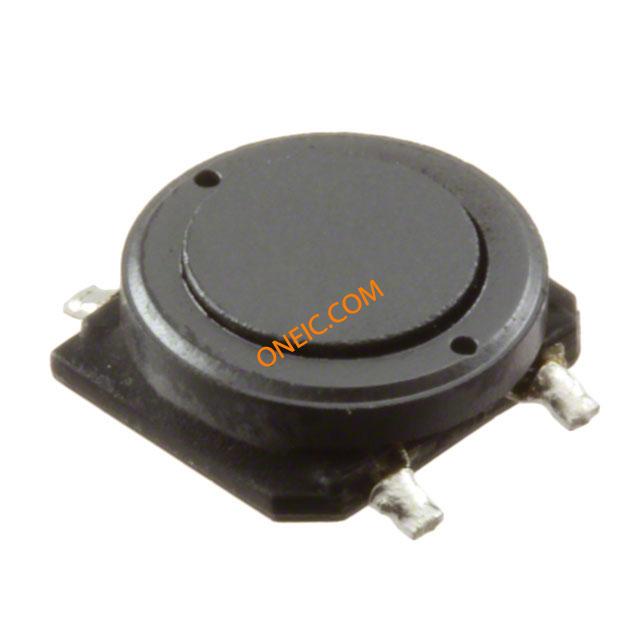

CLS62NP-100NC
| Manufacturer | |
| Description | Power Transformer Single Prim. Single Sec. Surface Mount Fixed Inductors 10uH Power Transformer 4Term. Gull Wing SMD INDUCTOR PWR 10UH 700MA SHILD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 308-2327-1 | Product Category | Fixed Inductors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Tolerance | ±30% | Inductance | 10 uH |
| Test Frequency | 2.52MHz | DC Resistance (DCR) | 200 mOhm Max |
| Current Rating (Max) | 700mA | Secondary Winding(s) | Single |
| Resistance - Initial (Ri) (Min) | 15 mOhms | ||
Mechanical
| Depth | 7.5 | Height | 2.5 |
| Packaging | Reel | Shielding | Shielded |
| Lead Style | Gull Wing | Mounting Type | Surface Mount |
| Package / Case | Non Standard | Length - Overall | 6.8 |
| Size / Dimension | 0.295" L x 0.268" W (7.50mm x 6.80mm) | Transformer Type | Power Transformer |
| Number of Contacts | 4 | Height - Seated (Max) | 0.098" (2.50mm) |
Product Info
| Features | Single | ||
