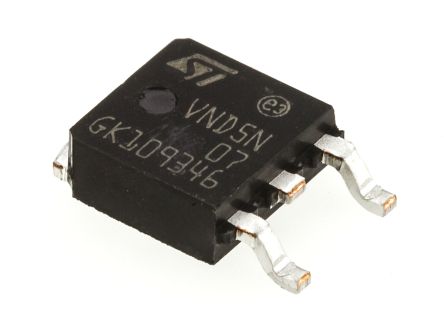

VND5N07-E
| Manufacturer | |
| Description | Power Switch Lo Side 5A 3-Pin(2+Tab) TO-252 Tube LSS 200mOhm 70V TO252-3 SMD MOSFET N-CH 70V 5A TO252 VND5N07, MOSFET Transistor, 3-Pin TO-252 STMicroelectronics , 单输出 智能电源开关, 5A, 70V, 3针 TO-252封装 MOSFET N-Ch 70V 5A OmniFET |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 75 |
| Other Names | VND5N07E | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | AEC-Q(100) |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
| Fault Protection | NANY/N/NA/NAN | ||
Electrical
| Channels | 1 | Input Type | Non-Inverting |
| Rds On (Typ) | 200mOhm | Power - Rated | 60 W |
| Voltage Rating | 18(Max) V | Current - Output | 0.25 mA |
| Voltage - Supply | 70(Max) V | Number of Outputs | 1 |
| Current - Trip (It) | 5A | Current - Peak Output | 5A |
| Voltage - Input (Min) | 70V | Current - Output (Typ) | 5(Max) A |
| Power Dissipation (Max) | 60000 mW | On-State Resistance (Max) | 0.2(Max) Ohm |
| Current - Leakage (IS(off)) (Max) | NY/N/NA/NAN | ||
Mechanical
| Width | 6.2mm | Height | 2.4mm |
| Length | 6.6mm | Packaging | TUBE |
| Mounting Type | Surface Mount | Package / Case | 3TO-252 |
| Package Cooled | TO-252 | Size / Dimension | 6.6 x 6.2 x 2.4mm |
| Number of Positions | 3 | Supplier Device Package | TO-252 |
Product Info
| Type | Low Side | DELETED | Compliant |
| Matchcode | VND5N07-E | Switch Type | Low Side |
| Card Standard | Power Switch | Standard Leadtime | 42 weeks |
| Other Specifications | VND5N07 | ||
Environmental
| Operating Temperature | -40 to 150 °C | Operating Temperature - Junction | -40°C |
