VIPER22ADIP
| Manufacturer | |
| Description | Current Mode PWM Controller 730V 8-Pin PDIP Tube AC/DC Switching Converters 700V 0.1A SMPS IC OFFLINE SWIT PWM SMPS 8DIP |
| Category |
Business
| Other Names | 497-3286-5 | Product Category | AC/DC Switching Converters |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
Compliance
| RoHS | No | ||
Electrical
| Fall Time | 100 ns | Power (Watts) | 12W |
| Voltage Rating | 730(Min) V | Frequency Range | 54kHz ~ 66kHz |
| Rise Time (Typ) | 50 ns | Output Isolation | Isolated |
| Voltage - Breakdown | 730V | Frequency - Switching | 60 KHz |
| Voltage - Input (Min) | 8 V ~ 50 V | Number of Outputs and Type | 1 |
Mechanical
| Packaging | Tube | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 8PDIP |
| Supplier Device Package | 8-DIP | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | -40 to 150 °C |
Similar Parts
STEVAL-ISA004V1
stmicroelectronics
Viper22AE Dual Output Evaluation Board With 90 To 264 VAC Input And 10 W Output Power Management IC Development Tools BOARD & REF DESIGN EVAL BOARD DUAL OUTPUT VIPER22A VIPer22A-E Dual-Out Eval Board with 90 to 264 VAC in and 10 W out
STEVAL-ISA035V1
stmicroelectronics
Non Isolated Offline Power Supply Demonstration Board Based On The Viper22AE Power Management IC Development Tools NON ISO PWR SUPPLY Eval BOARD VIPER22A BOARD EVAL BASED ON VIPER22A Development Kit, Power Management With Demonstration Board OFFLINEPOWERSUPPLY
STEVAL-ILL001V1
stmicroelectronics
Evaluation Board Introduces An Innovative Solution For Driving High Brightness 1 W LEDs LED Lighting Development Tools DRIVER FOR HB PWR LEDS WITH VIPER22A EVAL BOARD DIMMABLE HB PWR LED

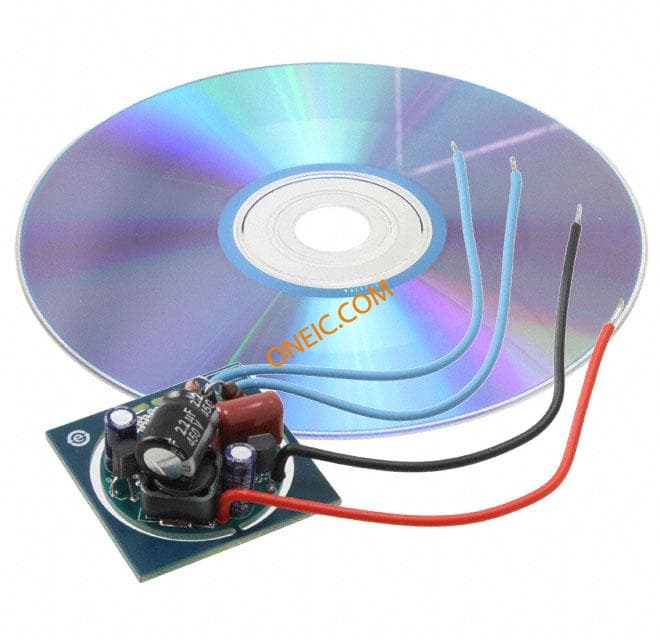

STEVAL-ILL026V1
stmicroelectronics
Non Isolated Offline LED Driver Demonstration Board Based On The Viper22AE LED Lighting Development Tools high-efficiency LED Switching BRD BOARD EVAL BASED VIPER22ASTR-E VIPER22A-E, OFFLINE LED DRIVER, 3W, DEMO BOARD

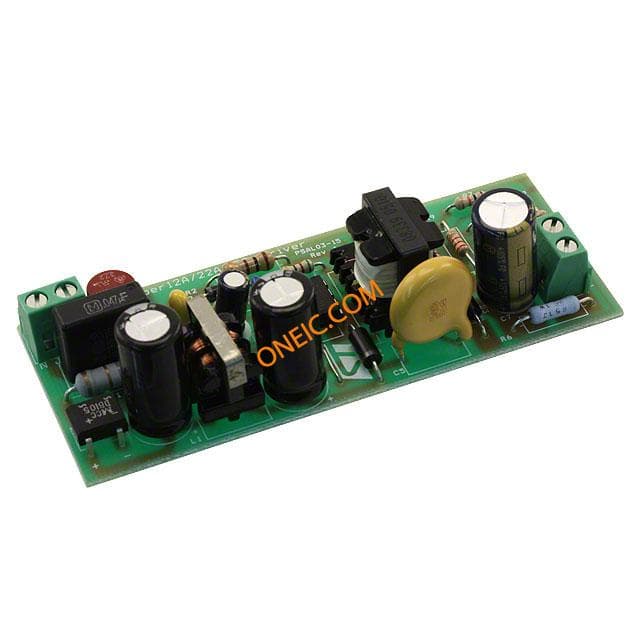

VIPER22-LED-EV
STMicroelectronics
VIPER LED POWER SUPPLY
