STTS75DS2F
| Manufacturer | |
| Description | Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin TSSOP T/R IC TEMP SENSOR DGTL WCHDG 8MSOP STTS75DS2F, 12bit Temperature Sensor ±3°C Serial-I2C 2.7 to 5.5V 8-Pin TSSOP Board Mount Temperature Sensors Digital temp sensor thermal watchdog DigitalTemperatureSensor12-BitI2C |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 497-6331-2 | Product Category | Board Mount Temperature Sensors |
| Standard Package | Cut Tape | Factory Pack Quantity | 1000 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Accuracy | ±3(Max) °C | Interface | Serial (2-Wire, I2C) |
| Tolerance | ±3°C(Max) | Output Fan | No |
| Resolution | 12(Max) Bit | Output Type | Digital |
| Sensor Type | Internal | Number of Bits | 12 bit |
| Voltage Rating | 2.7 V | Current - Output | 10 mA |
| Voltage - Supply | 2.7 to 5.5 V | Digital I/O Lines | 2-Wire, I2C, SMBus |
| Voltage - Supply (Min) | 5.5 V | ||
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 8TSSOP |
| Package Cooled | TSSOP | Length - Overall | 3 |
| Package Quantity | TSSOP | Size / Dimension | 3 x 3 x 0.85mm |
| Number of Positions | 8 | Shell Size - Insert | 0.85 |
| Supplier Device Package | 8-MSOP | ||
Product Info
| DELETED | Compliant | Function | Temp Sensor |
| Shutdown | Yes | Topology | ADC (Sigma Delta), Comparator, Register Bank |
| Output Alarm | Yes | Configuration | Local |
| Printed Circuit Board | 8 | ||
Environmental
| Sensing Temperature | -55°C ~ 125°C | Operating Temperature | -55°C ~ 125°C |
| Switching Temperature | Programmable | Temperature Coefficient | -55°C ~ 125°C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

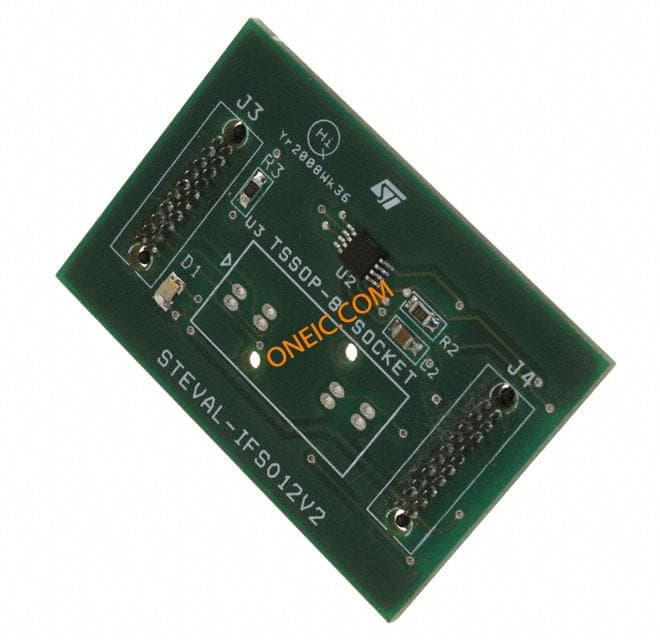

STEVAL-IFS012V2
stmicroelectronics
BOARD & REF DESIGN Temperature Sensor Development Tools STTS75 TEMPSENSOR Daughter Card EVAL DAUGHTER STTS75 8-TSSOP
$24.0570
Details

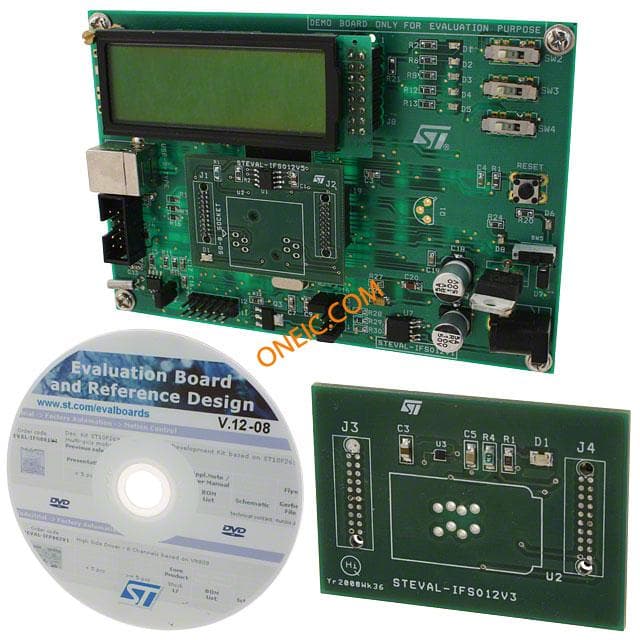

STEVAL-IFS012V1
stmicroelectronics
Multi-Device Temperature Sensor Demonstration Kit Temperature Sensor Development Tools MULTIDEVICE TEMP SENSOR DEMOBOARD BOARD ST72651AR6/STTS75/STLM20
Details
