STP16CPS05MTR
| Manufacturer | |
| Description | LED DRVR 16Segment 3.3V/5V 24-Pin SO T/R LED Display Drivers Low Voltage 16-bit Constant Auto Save 16xLEDDr 100mA SO-24 SMD IC LED DRIVER LINEAR 24-SOIC IC LED SINK DRIVER, 16-BIT, LO V STMicroelectronics LED 驱动器集成电路, 3 → 5.5 V 交流 100mA, 24针 SO |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Unit Pack | 1000 |
| Other Names | 497-5746-2 | Product Category | LED Display Drivers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Dimming | :Analogue | Frequency | 30MHz |
| Display Type | :LED | Voltage Rating | :20V |
| Current - Output | :100mA | Current - Supply | 11.7 mA |
| Voltage - Supply | 3 to 5.5 V | Number of Outputs | 16 |
| Current - Output 1 | 0.1A | Frequency - Switching | :30MHz |
| Voltage - Input (Min) | 20V | Voltage - Output (Max) | :20V |
| Voltage - Supply (Min) | 5.5 | Current - Output High, Low | 1000 uA |
| Constant Current Load - Max | Yes | Voltage - Continuous Operating (Max) (MCOV) | :5.5V |
Mechanical
| Width | 7.6(Max) | Weight | 0.0025 |
| Packaging | Reel | Case Color | :SOIC |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :24 | Package / Case | 24SO |
| Material Finish | :- | Length - Overall | 15.6(Max) |
| Package Quantity | SO | Number of Positions | 24 |
| Shell Size - Insert | 2.35(Max) | Supplier Device Package | 24-SOP |
Product Info
| Type | Linear | Topology | Linear, High Side |
| Base Unit | :16 | Matchcode | STP16CPS05MTR |
| Number of LEDs | 1 | Character Format | :LED Panel Display |
| Control Interface | :Serial | Standard Leadtime | 10 weeks |
| Number of Segments | 16 | Internal Connection | Yes |
| Application Specifics | :LED Displays | Printed Circuit Board | 24 |
Environmental
| Temperature - Test | -40° | Operating Temperature | + 125 C |
Documents & Media
Similar Parts
RE932-07
Roth Elektronik
RE932-07, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 22.5 x 18.5 x 1.5mm FR4 ADAPTOR, SMD, SO-24W, 1.27MM Board: universal; multiadapter; W:25.5mm; L:18.5mm; SO24W Laboratory card FR4 Epoxide + chem. Ni/Au SO24w Adapter, RE932-07, Roth Elektronik
$4.8552
Details

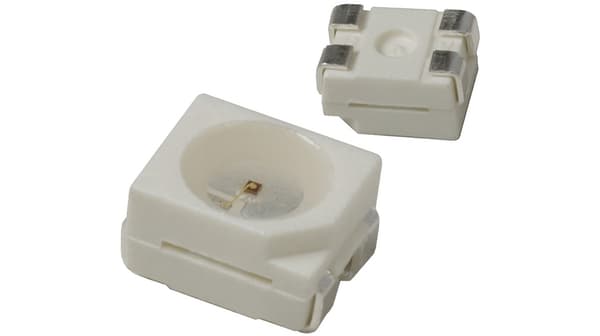

HSMF-A201-A00J1
