STP16CP05TTR
| Manufacturer | |
| Description | LED DRVR 16Segment 3.3V/5V 24-Pin TSSOP T/R LED Display Drivers Lo Vltg 16B constant current Led sink 16xLEDDr 100mA PwrSSO-24 SMD IC LED DRIVER LINEAR 24-TSSOP IC LED SINK DRIVER, 16-BIT, LO V STMicroelectronics 恒流 LED 驱动器, 3 → 5.5 V 交流 100mA, 24针 TSSOP LEDDr 16x 100mA PwrSSO-24 SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2500 | Unit Pack | 2500 |
| Other Names | 497-5744-2 | Product Category | LED Display Drivers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85235290 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Dimming | :Analogue | Frequency | 30MHz |
| Display Type | :LED | Voltage Rating | :20V |
| Current - Output | :100mA | Current - Supply | 11.7 mA |
| Voltage - Supply | 3 to 5.5 V | Number of Outputs | 16 |
| Current - Output 1 | 0.1A | Frequency - Switching | :30MHz |
| Voltage - Input (Min) | 20V | Voltage - Output (Max) | :20V |
| Voltage - Supply (Min) | 5.5 | Current - Output High, Low | 1000 uA |
| Constant Current Load - Max | Yes | Voltage - Continuous Operating (Max) (MCOV) | :5.5V |
Mechanical
| Weight | 0.001 | Packaging | Reel |
| Case Color | :TSSOP | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :24 |
| Package / Case | 24TSSOP | Material Finish | :- |
| Package Quantity | TSSOP | Number of Positions | 24 |
| Supplier Device Package | 24-TSSOP | ||
Product Info
| Type | Linear | Topology | Linear, High Side |
| Base Unit | :16 | Matchcode | STP16CP05TTR |
| Number of LEDs | 1 | Character Format | :LED Panel Display |
| Control Interface | :Serial | Standard Leadtime | 10 weeks |
| Number of Segments | 16 | Internal Connection | Yes |
| Application Specifics | :LED Displays | ||
Environmental
| Temperature - Test | -40° | Operating Temperature | + 125 C |
Documents & Media
Similar Parts
STEVAL-ILL003V2
stmicroelectronics
High Brightness 32LED Evaluation Board Without Diagnostic Based On The STP16CP05 LED Driver LED Lighting Development Tools HB LED W/OUT DIAGNOSTIC BOARD EVAL BASED ON STP16CP05 LED Driver Eval Board based on STP16CP05 STP16CP05, HB LED DRIVER, DEV BOARD LEDDRIVEREVALBOARD STMicroelectronics
$41.6500
Details
RE933-05
Roth Elektronik

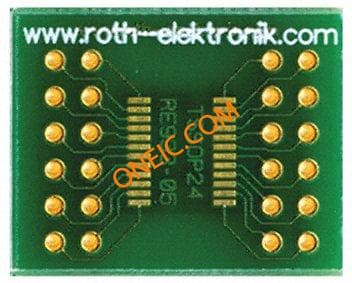

RE933-05, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 23.5 x 18.5 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-24, 0.65MM Board: universal; multiadapter; W:58.9mm; L:120.1mm; TSSOP24 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP24 Adapter, RE933-05, Roth Elektronik
