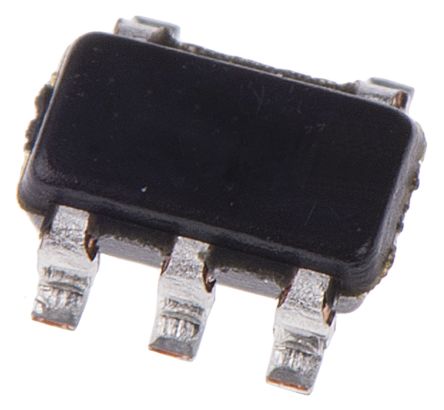

STM6822RWY6F
| Manufacturer | |
| Description | Processor Supervisor 2.63V 2.5V/3V/3.3V/5V 5-Pin SOT-23 T/R RESET WITH WATC IC SUPERVISOR PB RESET SOT23-5 STM6822RWY6F, Processor Supervisor 2.5, 3, 3.3, 5V Active Low, Open Drain, Reset 5-Pin SOT-23 Supervisory Circuits Supervisor reset Processor Supervisor 2.63V 12uA 5-Pin SOT-23 T/R SUPERVISOR,STM6822RWY6F 处理器监控器, 2.5 V, 3 V, 3.3 V, 5 V监控电压, 多种输出驱动, 复位功能, 5针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | 497-4665-2 | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Reset | Yes | Output | Active Low/Open Drain |
| Clock Rate | 是 | Reset Time | 280 ms |
| Output Type | Push-Pull | Input Signal | No |
| Voltage Rating | 1 V | Watchdog Timer | Yes |
| Current - Supply | 12 uA | Number of Inputs | 1 Input |
| Voltage - Supply | 2.5|3|3.3|5 V | Voltage - Clamping | 2.59 V |
| Voltage - Threshold | 2.63V | Voltage - Input (Min) | 2.59 V |
| Voltage - Output (Max) | 2.69V | Voltage - Supply (Min) | 5.5 V |
| Power - Average Forward | 320 mW | Power Dissipation (Max) | 320 mW |
| Power - Minimum Receivable | No | Number of Voltages Monitored | 1 |
| Voltage - Input Offset (Max) | 2.63V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Protection Level (VP) (2416) | 2.63 | ||
Mechanical
| Width | 1.6mm | Height | 1.15mm |
| Length | 2.9mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Reset Force | 是 |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 5 | Package / Case | 5SOT-23 |
| Package Cooled | SOT-23 | Length - Overall | 3(Max) |
| Package Quantity | SOT-23 | Size / Dimension | 2.9 x 1.6 x 1.15mm |
| Number of Positions | 5 | Shell Size - Insert | 1.3(Max) |
| Supplier Device Package | SOT-23-5 | ||
Product Info
| Type | Simple Reset/Power-On Reset | Series | STM6822 |
| Manufacturer | STMicroelectronics | Reset Timeout | 140 ms Minimum |
| Battery Series | No | Number of Supervisors | 1 |
| Printed Circuit Board | 5 | Number of Monitor Fields | 1 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
