STLM75DS2F
| Manufacturer | |
| Description | Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin MSOP T/R IC TEMP SENSOR DGTL WCHDG 8-MSOP STLM75DS2F, 9bit Temperature Sensor ±3°C Serial-I2C 2.7 to 5.5V 8-Pin MSOP Board Mount Temperature Sensors Digital Temp Snsr Thermal Watchdog TEMPSENSOR,STLM75DS2F STMicroelectronics , 9 位 数字温度传感器, ±3°C 串行 - I2C, 8针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 497-6326-2 | Product Category | Board Mount Temperature Sensors |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Accuracy | ±3(Max) °C | Interface | Serial (2-Wire, I2C) |
| Tolerance | ±3°C(Max) | Output Fan | No |
| Resolution | 9(Max) Bit | Output Type | Digital |
| Sensor Type | Internal | Number of Bits | 9 bit |
| Voltage Rating | 2.7 V | Current - Output | 10 mA |
| Voltage - Supply | 2.7 to 5.5 V | Digital I/O Lines | 2-Wire, I2C, SMBus |
| Voltage - Supply (Min) | 5.5 V | ||
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8MSOP | Package Cooled | MSOP |
| Package Quantity | MSOP | Size / Dimension | 3 x 3 x 0.85mm |
| Number of Positions | 8 | Supplier Device Package | 8-MSOP |
Product Info
| Function | Temp Sensor | Shutdown | Yes |
| Topology | ADC (Sigma Delta), Comparator, Register Bank | Output Alarm | Yes |
| Configuration | Local | ||
Environmental
| Sensing Temperature | -55°C ~ 125°C | Operating Temperature | -55°C ~ 125°C |
| Switching Temperature | Programmable | Temperature Coefficient | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts

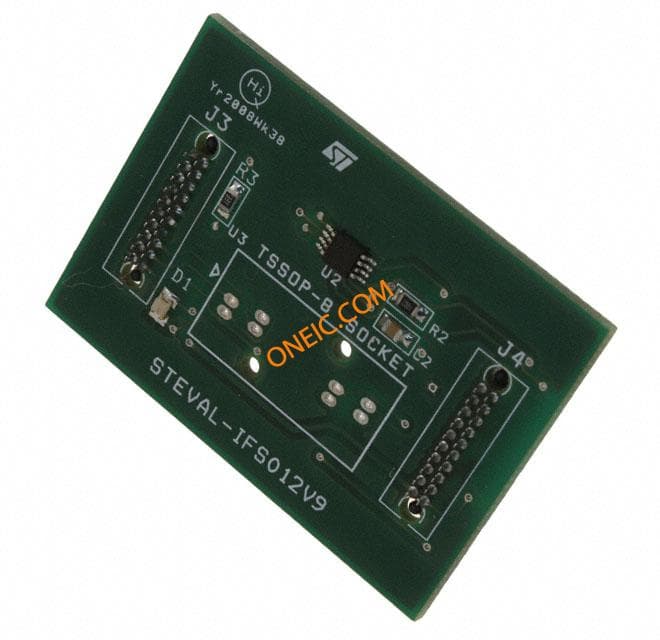

STEVAL-IFS012V9
