STEVAL-IPE020V1
| Manufacturer | |
| Description | Power Management IC Development Tools Single phase Meter w/Dual EEProm BOARD DEMO ENERGY METER STPM10 |
| Category |
Business
| Product | Demonstration Boards | Other Names | 497-14514 |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Interface | IrDA | Voltage Rating | 240 V |
| Current - Output | 10 A | ||
Mechanical
| Packaging | Bulk | ||
Product Info
| Type | Energy Meters | Contents | Board |
| Embedded | Yes, MCU, 8-Bit | Function | For demonstration of a single phase energy meter with dual EEPROM data logging |
| Main Purpose | Power Management, Energy/Power Meter | Tool Type Feature | STPM10, STM8L152 |
| Utilized IC / Part | M24LR64, STM8L152, STPM10 | Secondary Attributes | LCD On-Board |
| For Use With/Related Products | STPM10, STM8L152 | ||
Documents & Media
Similar Parts
M24LR64-RMN6T/2
stmicroelectronics
EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin SO N T/R TAG IC R/W 13,56MHz I2C 64Kbit 13.56MHZ 64KBIT EEPROM SO8N RFID Transponders Dual Interface 64k EEPROM ISO15693-I2C EEPROM, 64K, DUAL INTERFACE, 8SOIC

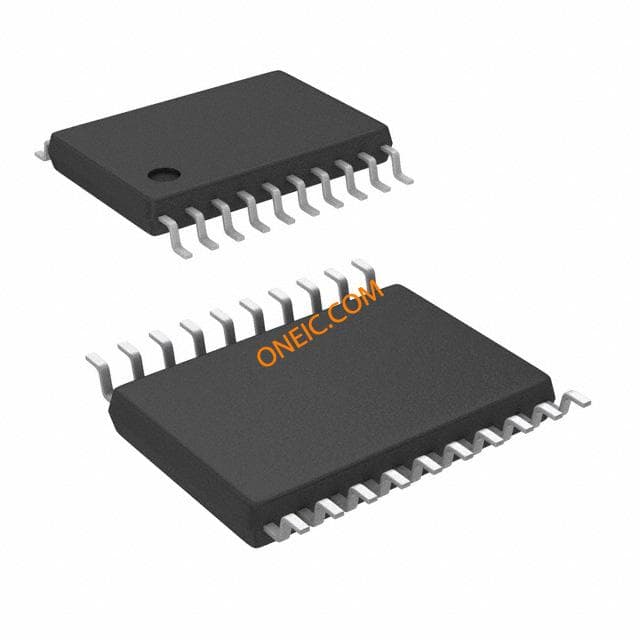

STPM10BTR
stmicroelectronics
Energy Measurement 20-Pin TSSOP T/R METERING IC TSSOP20 SMD IC ENERGY METER 1 PHASE 20TSSOP Current & Power Monitors & Regulators Programmable single phase energy meter
M24LR64-RDW6T/2
stmicroelectronics
EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R TAG IC R/W 13,56MHz I2C 64Kbit 13.56MHZ 64KBIT EEPROM 8 TSSOP RFID Transponders Dual Interface 64k EEPROM ISO15693-I2C EEPROM, 64K, DUAL INTERFACE, 8TSSOP STMicroelectronics EEPROM 存储器, 64kbit, 8192 x, 8bit, 串行 - I2C接口, 900ns, 1.8 → 5.5 V, 8针 TSSOP封装

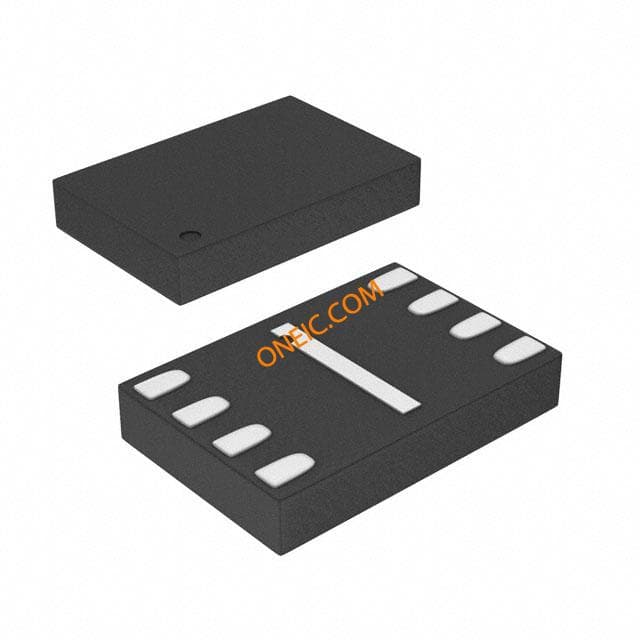

M24LR64-RMB6T/2
