STEVAL-IPB001V1
| Manufacturer | |
| Description | Evaluation Board For Universal Input Voltage Power Supply Power Management IC Development Tools 2W 3-Phase Breaker UC3845 STC04IE170 EVAL BOARD 2W 3PH SMPS BRKR ESBT |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Power - Output | 2W | Voltage Rating | 150 V to 1200 V |
| Current - Output | 83mA | Voltage - Supply | 24V |
| Regulator Topology | Flyback | Current Rating (Max) | 83mA |
| Frequency - Switching | 50kHz | Voltage - Input (Min) | 24V |
Mechanical
| Packaging | Bulk | Board Thickness | Fully Populated |
| Supplier Device Package | Fully Populated | ||
Product Info
| Type | Development Kit | Contents | Board |
| Application | AC/DC, Primary Side | Main Purpose | AC/DC, Primary Side |
| Outputs and Type | 1, Isolated | Tool Type Feature | UC3845B, STC04IE170 |
| Utilized IC / Part | UC3845B | ||
Documents & Media
Similar Parts
UC3845BN
stmicroelectronics
Current Mode PWM Controller 1A 8-Pin Mini-PDIP Tube SMPS 30V 1A Minidip THT IC REG CTRLR BST FLYBK ISO 8-DIP UC3845BN, PWM Current Mode Controller, 1A Boost, Flyback, 500kHz 8-Pin MiniPDIP Switching Controllers 0.5mA Current Mode Current Mode PWM Controller 1A 8-Pin Mini PDIP IC, PWM CONTROLLER, 3845, DIP8 IC,UC3845BN , PWM 电流模式控制器, 1 A, 升压、反激式, 500 kHz, 8针 PDIP封装 SMPS 30V 1A DIP-8 THT
UC3845BD1
stmicroelectronics
Current Mode PWM Controller 1A 8-Pin SO N SMPS SO-8 SMD IC REG CTRLR BST FLYBK ISO SO-8 UC3845BD1, PWM Current Mode Controller, 1A Boost, Flyback, 500kHz 8-Pin SOIC Switching Controllers PWM CONTROLLER , PWM 电流模式控制器, 1 A, 升压、反激式, 500 kHz, 8针 SOIC封装

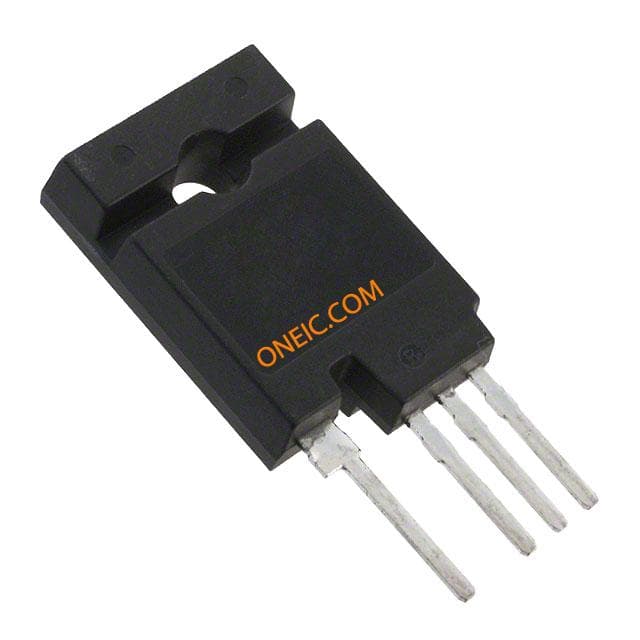

STC04IE170HP
