STEVAL-IAS001V1
| Manufacturer | |
| Description | Security Keypad Demonstration Board Based On ST7Lite39F2 And Stm1403 Security / Authentication Development Tools Security Keypad Demo ST7Lite39F2 STM1403 BOARD EVAL ST7FLITE39/STM1403 |
| Category |
Business
| Product | Evaluation Boards | Product Category | Security / Authentication Development Tools |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | ||
Electrical
| Interface | RS-232, SCI | Voltage - Supply | 3.4 V to 19 V |
Product Info
| Type | Development Kit | Contents | Board, Software |
| Embedded | Yes, MCU, 8-Bit | Function | Demonstration board offers the functionality of a keypad controller in security door applications |
| Main Purpose | Reference Design, Security Keypad (MCU Based) | Tool Type Feature | STM1403, ST7Lite39F2 |
| Primary Attributes | 4x3 Key Matrix, Intrusion Detection | Utilized IC / Part | ST7FLITE39, STM1403 |
| Secondary Attributes | Graphical User Interface, RS-232 Interface | ||
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | ||
Documents & Media
Similar Parts
ST7FLITE39F2B6
stmicroelectronics
MCU 8-bit ST7 CISC 8KB Flash 3.3V/5V 20-Pin DIP Tube MCU 8-bit ST7 ST7 CISC 8KB Flash 3.3V/5V 20-Pin DIP Tube ST72 8K DIP20 85°C IC MCU 8BIT 8K FLASH 20DIP ST7FLITE39F2B6, 8 bit Microcontroller ST7 8MHz 8kb Flash, 128, 384B RAM, SPI 20-Pin PDIP 8-bit Microcontrollers - MCU 8-bit single VF ST7 microcontroller; Flash:8kB; EEPROM:256B; 16MHz; SRAM:384B
ST7FLITE39F2M6
stmicroelectronics
MCU 8-bit ST7 CISC 8KB Flash 3.3V/5V 20-Pin SO Tube MCU 8-bit ST7 ST7 CISC 8KB Flash 3.3V/5V 20-Pin SO Tube ST72 8K SO20 85°C IC MCU 8BIT 8K FLASH 20SOIC ST7FLITE39F2M6, 8 bit Microcontroller ST7 8MHz 8kb Flash, 128, 384B RAM, SPI 20-Pin SOP 8-bit Microcontrollers - MCU 8-BIT MCU SINGLE V FLASH 8BIT MCU, 8K FLASH, 384B RAM, SMD MICROST7FLITE39F2M6
STM1403ATOQ6F
stmicroelectronics
Processor Supervisor 3.085V 16-Pin QFN EP T/R IC SECURITY SUPERVISOR 16-QFN
ST7FLITE39F2M3
stmicroelectronics
MCU 8-bit ST7 CISC 8KB Flash 3.3V/5V 20-Pin SO Tube SO20, 8K, 1% IN IC MCU 8BIT 8K FLASH 20SOIC 8-bit Microcontrollers - MCU 8 BITS MICROCONTR
.jpg&w=3840&q=75)

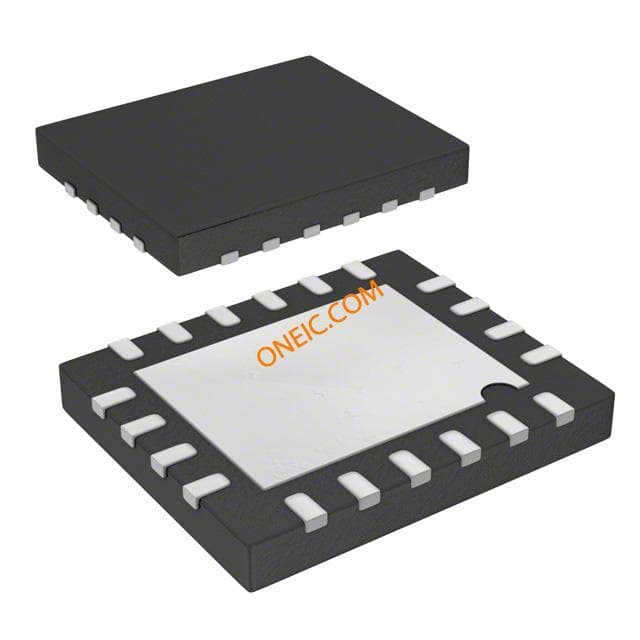

ST7FLITE39F2U6
