STDS75M2F
| Manufacturer | |
| Description | Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin SO N T/R IC TEMP SENSOR/WATCHDOG 8-SOIC STDS75M2F, 12bit Temperature Sensor ±3°C Serial-I2C 2.7 to 5.5V 8-Pin SOIC STDS75 Series 5.5 V 10 mA Digital Temperature Sensor and Thermal Watchdog |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 497-6177-2 | Standard Package | 2,500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Accuracy | ±3°C(Max) | Interface | Serial (2-Wire, I2C) |
| Output Fan | No | Resolution | 12 bit |
| Output Type | Digital | Sensor Type | Internal |
| Voltage Rating | 2.7 V | Voltage - Supply | 2.7 V ~ 5.5 V |
| Voltage - Supply (Min) | 5.5 V | ||
Mechanical
| Width | 4mm | Height | 1.25mm |
| Length | 5mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Package Cooled | SO |
| Length - Overall | 5(Max) | Package Quantity | SO N |
| Size / Dimension | 5 x 4 x 1.25mm | Number of Positions | 8 |
| Shell Size - Insert | 1.65(Max) | Supplier Device Package | 8-SO |
Product Info
| Function | Temp Sensor | Topology | ADC (Sigma Delta), Comparator, Register Bank |
| Output Alarm | Yes | Printed Circuit Board | 8 |
Environmental
| Sensing Temperature | -55°C ~ 125°C | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts

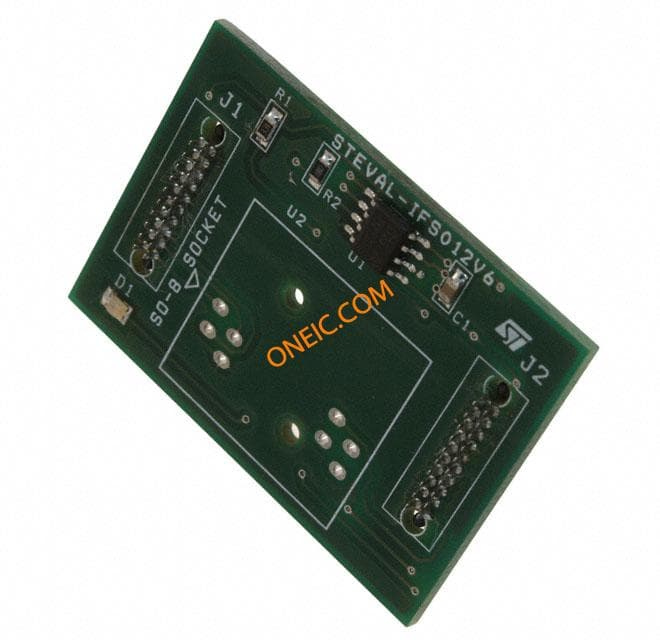

STEVAL-IFS012V6
