STDS75DS2F
| Manufacturer | |
| Description | Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin MSOP T/R IC TEMP SENSOR WTCHDG DGTL 8MSOP STDS75DS2F, 12bit Temperature Sensor ±3°C Serial-I2C 2.7 to 5.5V 8-Pin MSOP Board Mount Temperature Sensors Digital TEMP sensor thermal watchdog DigitalTemperatureSensor12-BitI2C STCN75 Series 5.5 V Digital Temperature Sensor and Thermal Watchdog - MSOP-8 STMicroelectronics , 12 位 数字温度传感器, ±3°C 串行 - I2C, 8针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 497-6318-2 | Product Category | Board Mount Temperature Sensors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Accuracy | ±3(Max) °C | Interface | Serial (2-Wire, I2C) |
| Output Fan | No | Resolution | 12(Max) Bit |
| Output Type | Digital | Sensor Type | Internal |
| Number of Bits | 12 bit | Voltage Rating | 2.7 V |
| Current - Output | 10 mA | Voltage - Supply | 2.7 to 5.5 V |
| Digital I/O Lines | 2-Wire, I2C, SMBus | Voltage - Supply (Min) | 5.5 V |
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8MSOP | Package Cooled | MSOP |
| Package Quantity | MSOP | Size / Dimension | 3 x 3 x 0.85mm |
| Number of Positions | 8 | Supplier Device Package | 8-MSOP |
Product Info
| Function | Temp Sensor | Shutdown | Yes |
| Topology | ADC (Sigma Delta), Comparator, Register Bank | Output Alarm | Yes |
| Configuration | Local | ||
Environmental
| Sensing Temperature | -55°C ~ 125°C | Operating Temperature | -55°C ~ 125°C |
| Switching Temperature | Programmable | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

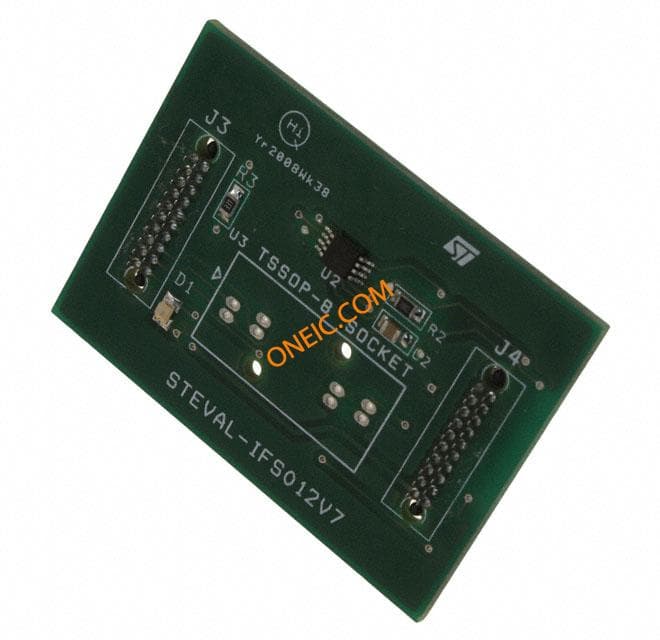

STEVAL-IFS012V7
