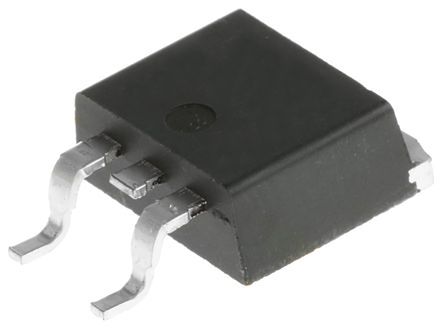

STB12NK80ZT4

Manufacturer	STMicroelectronics N.V.
Description	MOSFET N-Ch 800 Volt 10.5A Zener SuperMESH Trans MOSFET N-CH 800V 10.5A 3-Pin(2+Tab) D2PAK T/R MOSFET N-CH 800V 10.5A D2PAK MOSFET, N CH, 800V, 10.5A, D2PAK STMicroelectronics MDmesh, SuperMESH 系列 N沟道 Si MOSFET , 10.5 A, Vds=800 V, 3针 D2PAK封装
Category	Discrete Semiconductor ComponentsDiscrete SemiconductorsDIACs - Trigger Diodes

对参数有疑问？问 AI 助手

Business

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85423300

FET Type	MOSFET N-Channel, Metal Oxide	Fall Time	20 ns
Vgs (Max)	:10V	FET Feature	Standard
Gate Charge	87 nC	Power - Max	190W
Power - Rated	190 W	Rise Time (Typ)	18 ns
Transistor Type	N-Channel	Delay to 1st Tap	70 ns
Number of Elements	1	Vgs(th) (Max) @ Id	4.5V @ 100µA
Voltage - Breakdown	800	Voltage - Threshold	:3.75V
Current Rating (Max)	:10.5A	Resistance - RDS(On)	:650mohm
Contact Voltage (Max)	:800V	Rds On (Max) @ Id, Vgs	750 mOhm @ 5.25A, 10V
Power Dissipation (Max)	:190W	Vce(on) (Max) @ Vge, Ic	800 V
On-State Resistance (Max)	750@10V	Current Transfer Ratio (Min)	12 S
Gate Charge (Qg) (Max) @ Vgs	87nC @ 10V	Drain to Source Voltage (Vdss)	800V
Current - Peak Pulse (10/1000us)	10.5	Voltage - Gate Trigger (Vgt) (Max)	+/- 30 V
Current - Drain (Idss) @ Vds (Vgs=0)	10.5 A	Input Capacitance (Ciss) (Max) @ Vds	2620pF @ 25V
Current - Continuous Drain (Id) @ 25degC	10.5A (Tc)
