ST1S03PUR
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 3V to 16V 6-Pin DFN T/R DC-DC 16V 1.5A D DFN6D SMD IC REG BUCK 1.5A DFN6 Voltage Regulators - Switching Regulators 3-16V STEP DOWN REGULATOR,VOLTAGE,STEP-DOWN,1.5A,DFN6PKG STMicroelectronics 开关稳压器, 可调输出, 1.8 MHz, 6针 DFN封装 Switching Voltage Regulators 3-16V STEP DOWN |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | 497-6046-2 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Cut Tape | Factory Pack Quantity | 3000 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| PWM Type | Current Mode | Frequency | 1500000Hz |
| Efficiency | 70(Min) % | Output Type | Adjustable |
| Regulator Type | DC-DC,Switching | Voltage Rating | 3 V |
| Line Regulation | 0.06 %Vo/Vi | Load Regulation | 0.003 %Vo/mA |
| Oscillator Type | 1.5MHz | Current - Output | 1.5(Min) A |
| Voltage - Supply | 3 to 16 V | Number of Outputs | 1 |
| Current - Output 1 | 1.5A | Regulator Topology | Step Down |
| Resistance @ 25degC | 10°C/W | Switching Regulator | Yes |
| Frequency - Switching | 1800 kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 16V | Input Logic Level - Low | 600nA |
| DC Voltage - Input (Min) | 3 V | ||
Mechanical
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 6DFN | Package Cooled | DFN |
| Package Quantity | DFN | Number of Positions | 6 |
| Supplier Device Package | 6-DFN (3x3) | ||
Product Info
| Type | Step Down | Matchcode | ST1S03PUR |
| Standard Leadtime | 15 weeks | ||
Environmental
| Operating Temperature | N/A to 150 °C | Usable Temperature Range | 0to+150°C |
| Maximum Temperature Limit | 150°C | ||
Similar Parts

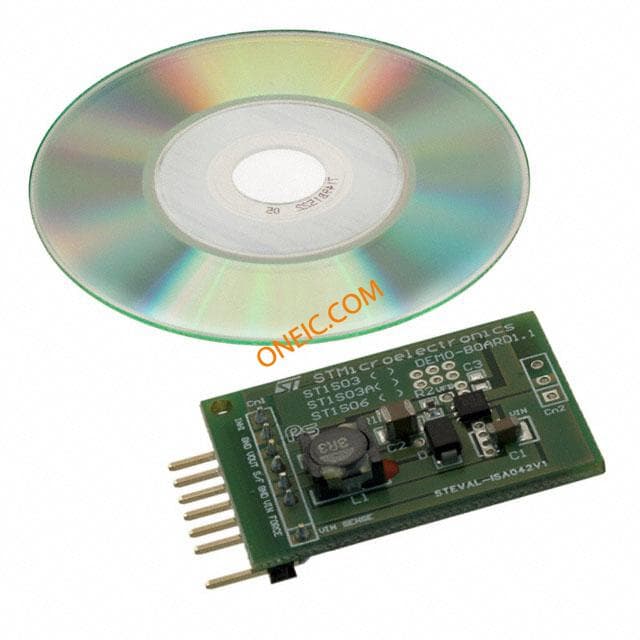

STEVAL-ISA042V1
stmicroelectronics
Demonstration Boards For Step-Down DC-DC Converter Based On ST1S03 Power Management IC Development Tools 1.5A/1.2V STEP-DOWN DC-DC CONV ST1S03 BOARD EVAL BASED ON ST1S03 STEVAL-ISA042V1, Development Kit, Power Management, Demonstration Board 1.5A1.2VDC-DCConverterDemoBoard
$327.6700
Details
STEVAL-ISA042V2
stmicroelectronics
Demonstration Boards For Step-Down DC-DC Converter Based On ST1S03 Power Management IC Development Tools 1.5A/3.3V STEP-DOWN DC-DC CONV ST1S03 BOARD EVAL BASED ON ST1S03
$327.6700
Details
