ST1S03APUR
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.6V to 5.5V 6-Pin DFN T/R DC-DC 7V 1.5A D DFN6D SMD IC REG BUCK 1.5A DFN6D Voltage Regulators - Switching Regulators 1.5A 1.5 MHz Adj |
| Category |
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | 497-6902-1 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| PWM Type | Current Mode | Frequency | 1500000Hz |
| Efficiency | 85(Min) % | Output Type | Adjustable |
| Voltage Rating | 0.5 to 5 V | Line Regulation | 0.2%(Typ) |
| Load Regulation | 0.2(Typ) % | Current - Output | 1.5(Min) A |
| Voltage - Supply | 2.6 to 5.5 V | Number of Outputs | 1 |
| Current - Output 1 | 1.5A | Switching Regulator | Yes |
| Frequency - Switching | 1500(Typ) kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 7V | ||
Mechanical
| Width | 3 | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 6DFN |
| Length - Overall | 3 | Package Quantity | DFN |
| Number of Positions | 6 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 6-DFN (3x3) | ||
Product Info
| Type | Step Down | Matchcode | ST1S03APUR |
| Standard Leadtime | 18 weeks | Printed Circuit Board | 6 |
Environmental
| Operating Temperature | -30 to 125 °C | Maximum Temperature Limit | 150°C |
Documents & Media
Similar Parts
STEVAL-ISA042V1
stmicroelectronics
Demonstration Boards For Step-Down DC-DC Converter Based On ST1S03 Power Management IC Development Tools 1.5A/1.2V STEP-DOWN DC-DC CONV ST1S03 BOARD EVAL BASED ON ST1S03 STEVAL-ISA042V1, Development Kit, Power Management, Demonstration Board 1.5A1.2VDC-DCConverterDemoBoard
STEVAL-ISA042V2
stmicroelectronics
Demonstration Boards For Step-Down DC-DC Converter Based On ST1S03 Power Management IC Development Tools 1.5A/3.3V STEP-DOWN DC-DC CONV ST1S03 BOARD EVAL BASED ON ST1S03
STEVAL-ISA047V1
stmicroelectronics

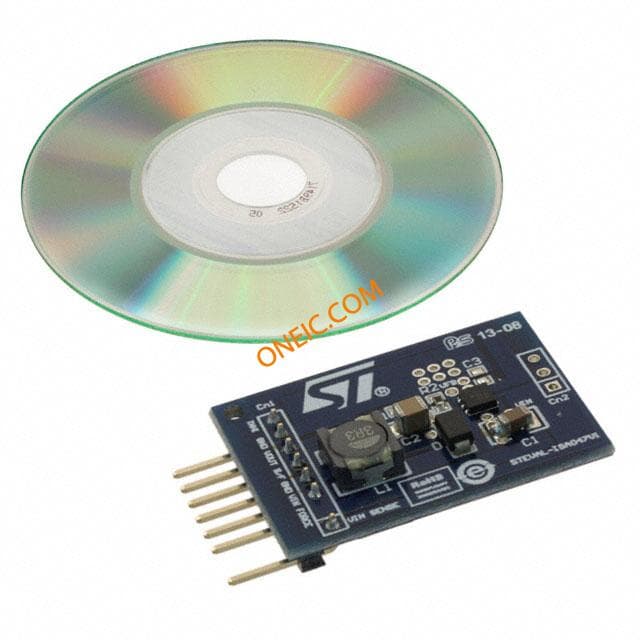

Step-Down DC-DC Converter Demonstration Board Based On The ST1S03A Power Management IC Development Tools 1.5A/1.2V STEP-DOWN DC-DC CONV ST1S03A BOARD EVAL BASED ON ST1S03A Development Kit, Power Management With Demonstration Board CONVERTEREVALBOARD STMicroelectronics STEVAL系列, 电子负载
STEVAL-ISA047V2
stmicroelectronics

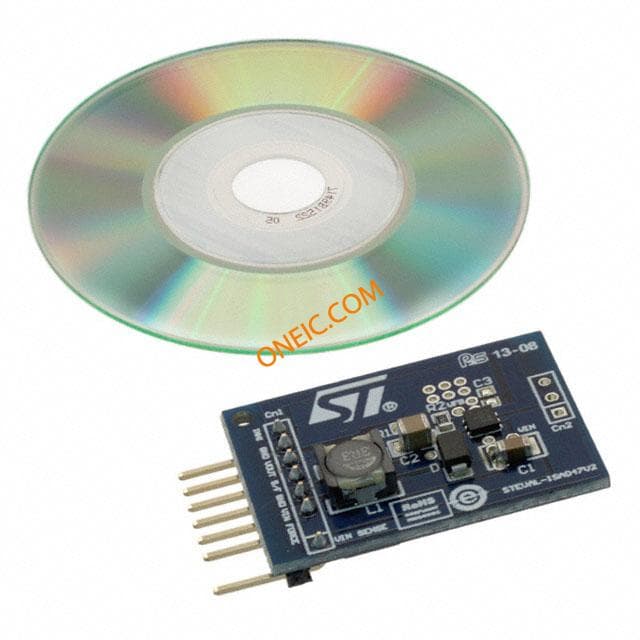

Step-Down DC-DC Converter Demonstration Board Based On The ST1S03A Power Management IC Development Tools 1.5A/3.3V STEP-DOWN DC-DC CONV ST1S03A BOARD EVAL BASED ON ST1S03A Development Kit, Power Management With Demonstration Board CONVERTEREVALBOARD STMicroelectronics
