PM6675ASTR
| Manufacturer | |
| Description | Controller 24-Pin VFQFPN T/R GDDR2/3 POWER IC REG DL BUCK/LINEAR 24-VFQFPN LDO Voltage Controllers Complete DDR2/3 Mem Pwr supply controllr PM6675 Series 2 A Step Down Controller LDO Regulator - VFQFPN-24 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4000 | Unit Pack | 4000 |
| Other Names | 497-6894-1 | Product Category | LDO Voltage Controllers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 4000 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| w/LED Driver | No | Voltage Rating | 5 V |
| Voltage - Supply | 4.5 V ~ 36 V | Number of Outputs | 2 |
| Power Supply Type | Analog | Frequency - Switching | Down to 33kHz |
| Voltage - Input (Min) | 4.5 V to 36 V | Voltage - Supply (Min) | 5.5 V |
| Voltage/Current - Output 1 | Controller | Voltage/Current - Output 2 | 0.6 V ~ 3.3 V, 2A |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 4 | Packaging | Tape and Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 24VFQFPN | Length - Overall | 4 |
| Package Quantity | VFQFPN | Number of Positions | 24 |
| Shell Size - Insert | 0.9 | Supplier Device Package | 24-VFQFPN (4x4) |
Product Info
| Function | Any Function | Topology | Step-Down (Buck) (1), Linear (LDO) (1) |
| w/Sequencer | No | w/Supervisor | No |
| Printed Circuit Board | 24 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
STEVAL-ISA052V2
stmicroelectronics
Evaluation Board For The PM6675AS High Efficiency Step Down Controller With Embedded 2 A LDO Regulator Power Management IC Development Tools PM6675A EVAL KIT STEP-DOWN 2A LDO BOARD EVAL BASED ON PM6675A STEVAL-ISA052V2, Development Kit, Power Management, Evaluation Board for PM6675AS CONVERTEREVALBOARD STMicroelectronics 评估测试板 电源管理 处理器和微控制器开发套件
$96.8408
Details

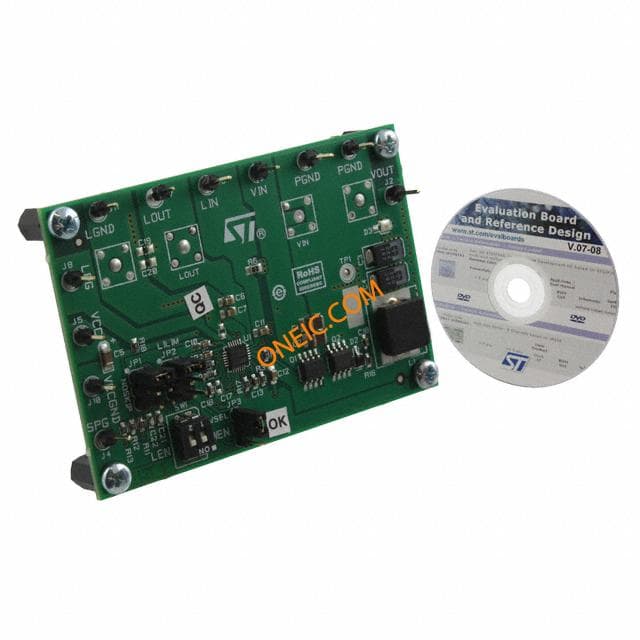

STEVAL-ISA052V1
stmicroelectronics
High Efficiency Step-Down Controller With Embedded 2 A Ldo Regulator Demonstration Board Based On The Pm6675S Power Management IC Development Tools PM6670S Eval KIT HIGH EFFICIENCY KIT EVAL PM6675S HE CTLR 2A REG PM6675S, STEP DOWN CONTROLLER, LDO, EVAL BOARD
$93.1627
Details
