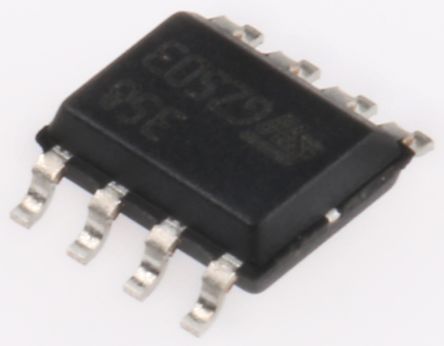

LM358D
| Manufacturer | |
| Description | OP Amp Dual GP ±15V/30V 8-Pin SO N Tube IC OPAMP GP 1.1MHZ 8SO LM358D, Dual Operational Amplifier 1.1MHz 5 to 28V, 8-Pin SO, SOIC OP Amp Dual GP ?15V/30V 8-Pin SO N Tube OP AMP, DUAL, 1.1MHZ, 0.6V/US, 8SOIC Amplifier;DualOperational;+/-16or32V;0.7mA(Typ.)Supply;+32V;SO-8;0 Operational amplifier; 1.1MHz; 3÷30VDC; Channels:2; SO8 Operational Amplifier Dual 1.1 MHz SO-8, LM358D, ST STMicroelectronics T 双 运算放大器, 1.1MHz, 5 → 28 V, 8针 SOIC Operational Amplifiers - Op Amps Dual Low Power 2xOP 1.1MHz 0,6V/µs SO8 _SMD |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Standard Package | Rail / Tube | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Automotive | NO | Part Status | :358 |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Gain | 100 dB | Noise | 55nV/rtHz |
| Channels | 2 | Slew Rate | 0.6@15V V/us |
| Output Type | No | Offset Drift | 7µV/°C |
| Signal Types | 100V/mV | Power - Input | Single/Dual |
| TV Distortion | 0.02% | Transistor Type | :Low Power |
| CMRR, PSRR (Typ) | 70 dB | Current - Output | 40mA |
| Current - Supply | 1.2@5V@0C to 70C mA | Voltage - Supply | 3 V |
| Power Supply Type | Single|Dual | Number of Channels | 2 |
| Number of Elements | 2 | Voltage - Output 4 | 5mV |
| Current - Input Bias | 20nA | Noise - 0.1Hz to 10Hz | 55nV/sqrtHz |
| Number of ADCs / DACs | :2 | Voltage - Input (Min) | 3V |
| Gain Bandwidth Product | 1.1 MHz | Rail-to-Rail Operation | No |
| Input Logic Level - Low | 20nA | Current - Input Bias (Max) | 0.15@5V uA |
| Current - Output / Channel | 60mA | Input Offset Current (Max) | 0.03@5V |
| Input Noise Voltage Density | 55@30V nV/rtHz | Voltage - Supply Span (Typ) | �3/�5/�9/�12 V |
| Current Rating (Per Contact) | 350µA | Frequency Bands (Low / High) | 1.1MHz |
| Resistor - Emitter Base (R2) | no | Voltage - Input Offset (Max) | 7@5V mV |
| Propagation Delay tpLH / tpHL (Max) | 0.6V/μs | Common Mode Transient Immunity (Min) | 85dB |
| Voltage - Output Difference (Typ) @ Distance | 100 dB | ||
Mechanical
| Width | 4(Max) | Weight | 0.16 |
| Bandwidth | :1.1MHz | Footprint | 29.4mm² |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :8 |
| Package / Case | 8SO N | Package Cooled | SO N |
| Top Termination | 70°C | Length - Overall | 5(Max) |
| Package Quantity | SO N | Number of Positions | 8 |
| Shell Size - Insert | 1.65(Max) | Minimum Working Height | 0°C |
| Supplier Device Package | 8-SO | ||
Product Info
| Spg | 2500 | Type | General Purpose Amplifier |
| Shutdown | No | Base Unit | :358 |
| Matchcode | LM358D | Technology | Bipolar |
| Manufacturer | Low Power Amplifier | Amplifier Type | General Purpose |
| Number of Units | 5 | Standard Leadtime | 16 weeks |
| Number of Circuits | 2 | Utilized IC / Part | :LM358D |
| Other Specifications | LowPower | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | 0 to 70 °C | Usable Temperature Range | 0to+70°C |
Documents & Media
Similar Parts
LM358DG
on semiconductor
