L6585D
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT 20-Pin SO Electronic Ballast Controller 15V 250KHz 20-Pin SO Tube COMBO CHIP = BA IC CTRLR PFC/BALLAST SOIC-20 L6585D, Lighting Ballast Driver, 20-Pin, SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Unit Pack | 40 |
| Standard Package | Rail / Tube | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Dimming | No | Frequency | 58.4kHz ~ 62kHz |
| Voltage Rating | 11 | Frequency - Max | 250 |
| Current - Output | 7mA | Voltage - Supply | 11 to 16 V |
| Number of Outputs | 1 | Voltage - Supply (Min) | 16 |
| Power Dissipation (Max) | 830 | ||
Mechanical
| Width | 7.6(Max) | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Reel Capacity | * | Cable Material | * |
| Package / Case | 20SO | Package Cooled | SO |
| Length - Overall | 13(Max) | Package Quantity | SO |
| Tape Width - Max | * | Number of Positions | 20 |
| Shell Size - Insert | 2.35(Max) | Supplier Device Package | SO-20 |
Product Info
| Type | Electronic Ballast Controller | Pattern Number | * |
| Printed Circuit Board | 20 | ||
Environmental
| Operating Temperature | -40 to 150 °C | ||
Documents & Media
Online Document
PDF Document
Similar Parts
STEVAL-ILB005V2
stmicroelectronics
Demonstration Board Based On The New L6585DE Power Management IC Development Tools COMBO IC FOR PFC AND BALLAST CONTROL BOARD DEMO 1X54W T5 LAMP Demonstration Board for L6585DE Combo IC for PFC and Ballast Control
$156.3380
Details

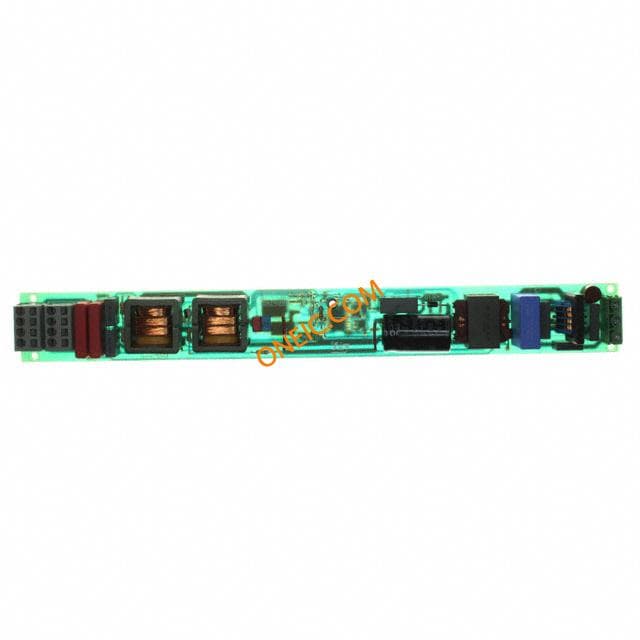

STEVAL-ILB006V1
