L6227Q
| Manufacturer | |
| Description | MOSFET DRVR 2.8A 4-OUT Hi/Lo Side Full Brdg 32-Pin VFQFPN Tube 2xH-Br 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Gate Drivers DMOS DUAL FULL Bridge w/ PWM MOTOR DRIVER, DUAL, 2.8A, PWM, 32QFN |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2940 | Product | H-Bridge Drivers |
| Unit Pack | 490 | Product Category | Gate Drivers |
| Standard Package | Trays | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Fall Time | 250 ns | Interface | Parallel |
| Voltage - Max | 5V | Voltage - Load | 8 V ~ 52 V |
| Voltage Rating | 8 V | Delay Time - ON | 1900(Typ) ns |
| Frequency - Max | 100 | Rise Time (Typ) | 250 ns |
| Current - Output | 1.4A | Delay Time - OFF | 1000 ns |
| Driver Circuitry | High and Low Side | Voltage - Supply | 8 V ~ 52 V |
| Number of Outputs | 4 | Current - Output 1 | 2.8A |
| Current - Peak Output | 2.8 A | Voltage - Input (Min) | 8V |
| Voltage - Supply (Min) | 52 V | Input Logic Level - High | CMOS|TTL |
| On-State Resistance (Max) | 730mOhm | Max Propagation Delay @ V, Max CL | 250 |
| Propagation Delay tpLH / tpHL (Max) | 500(Typ) | ||
Mechanical
| Weight | 0.0069 | Packaging | Tube |
| Case Color | :VFQFPN | Motor Type | :Full Bridge |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :32 | Package / Case | 32VFQFPN |
| Material Finish | :MSL 3 - 168 hours | Package Quantity | VFQFPN |
| Number of Positions | 32 | Supplier Device Package | 32-VFQFPN Exposed Pad (5x5) |
Product Info
| Type | 2xH-Br | Function | Driver - Fully Integrated, Control and Power Stage |
| Matchcode | L6227Q | Applications | General Purpose |
| Number of Drivers | 2 | Standard Leadtime | 12 weeks |
| Motor Type - AC, DC | Full Bridge | Motor Type - Stepper | Bipolar |
| Output Configuration | Full H-Bridge, (1) Single | ||
Environmental
| Temperature - Test | -25°C | Operating Temperature | -40 to 150 °C |
| Maximum Temperature Limit | 125°C | ||
Documents & Media
Similar Parts
EVAL6227QR
stmicroelectronics
Demonstration Board Using A Dual Full-Bridge L6227Q For Motor Control Applications Power Management IC Development Tools Dual Full Bridge L6227Q Eval DEMO EvalBoard L6227Q 2xH-Br _NO ROHS EVAL BOARD FOR L6227Q
$340.0000
Details
103H7822-0440
Sanyo Denki Co., Ltd.
STEPPER MOTOR, 1.8DEG, 4V
Details
103H548-0440
Sanyo Denki Co., Ltd.
STEPPER MOTOR, 1.8DEG, 3.6V
Details
103H7126-0440
Sanyo Denki Co., Ltd.
STEPPER MOTOR, 1.8DEG, 2A, 2 PHASE
$423.5800
Details
103H7123-0440
Sanyo Denki

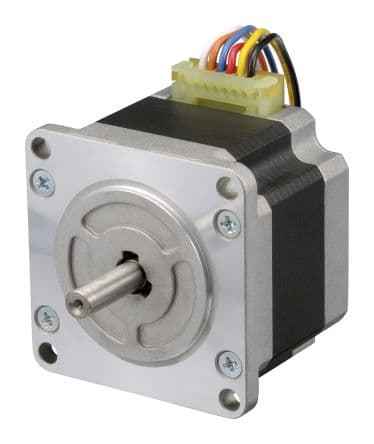

Sanyo Denki 103H7 系列 1.8° 单极 单轴 步进电机 , 6线, 0.83nm, 24 V 直流
