L6208PD
| Manufacturer | |
| Description | Bipolar Stepper Motor Driver 36-Pin PowerSO StepMotDr 2.8A 52V PwrSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6208PD, Motor Driver, 8 to 52V, 38-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor IC, DMOS DRIVER, SMD Motor Driver IC PowerSO-36, L6208PD, ST STMicroelectronics 电机驱动器 IC 步进电机, 2.8A, 100kHz, 8 → 52 V |
| Category |
Business
| MOQ | 310 | Unit Pack | 31 |
| Product Category | Motor / Motion / Ignition Controllers & Drivers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 31 | Standard Package Name | PowerSO |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Radiation Hardness | No |
Electrical
| Interface | Parallel | Voltage - Load | 8 V ~ 52 V |
| Voltage Rating | 8 V | Current - Output | 2.8A |
| Voltage - Supply | 8 V ~ 52 V | Number of Outputs | :4 |
| Voltage - Supply (Max) | 6 V | Voltage - Supply (Min) | 52 V |
| Current - Average Rectified (Io) | 10 mA | ||
Mechanical
| Width | 11.1mm | Height | 3.3mm |
| Length | 16mm | Weight | 2.27 |
| Packaging | Tube | Case Color | :SOIC |
| Lead Style | Gull-wing | Motor Type | :Stepper |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :36 |
| Package / Case | 36PowerSO | Package Cooled | PowerSO |
| Material Finish | :MSL 3 - 168 hours | Package Quantity | PowerSO |
| Size / Dimension | 16 x 11.1 x 3.3mm | Number of Positions | 36 |
| Supplier Device Package | PowerSO-36 | ||
Product Info
| Type | Bipolar Stepper Motor Driver | Function | Driver - Fully Integrated, Control and Power Stage |
| Matchcode | L6208PD | Applications | General Purpose |
| Standard Leadtime | 12 weeks | Motor Type - Stepper | Bipolar |
| Output Configuration | Full H-Bridge, (1) Single | Application Specifics | Stepping Motor Driver |
Environmental
| Temperature - Test | -25°C | Operating Temperature | -40 to 150 °C |
| Maximum Temperature Limit | 125°C | Operating Temperature - Junction | 150C |
Documents & Media
Similar Parts
744727
Wurth Electronics
Inductor Kits & Accessories STM Design Kit Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD CHOKESFOR SMT Wurth Elektronik 176件 电感器设计套件, 套件包含功率电感器
EVAL6208PD
stmicroelectronics
DMOS Driver For Bipolar Stepper Motor In Powerdip Package Evaluation Board Power Management IC Development Tools Eval Brd for L6208PD EvalBoard L6208PD StepMotDr _NO ROHS EVAL BOARD FOR L6208 SERIES L6208, DMOS DRIVER, STEPPER MOTOR, EVAL BOARD
EVAL6208N
stmicroelectronics
Evaluation Board For DMOS Driver For Bipolar Stepper Motor In Power DIP Package Power Management IC Development Tools Eval Board for L6208 EvalBoard L6208N StepMotDr _NO ROHS EVAL BOARD FOR L6208N DIP L6208, DMOS DRIVER, STEPPER MOTOR, EVAL BOARD
RE932-10
Roth Elektronik

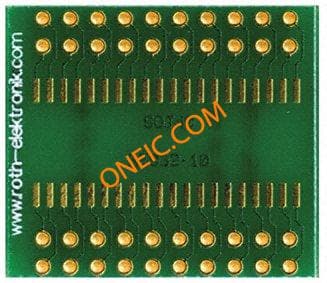

RE932-10, Surface Mount (SMT) Board SOJ Epoxy Glass Double-Sided 35.5 x 29 x 1.5mm FR4 ADAPTOR, SMD, SOJ-40, 1.27MM Board: universal; multiadapter; W:25.5mm; L:29mm; SO40 Laboratory card FR4 Epoxide + chem. Ni/Au SOJ40, RE932-10, Roth Elektronik
