L5973AD
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 4V to 36V 8-Pin HSOP EP Tube STEP DOWN REG IC REG BUCK ADJ 2A 8SOIC L5973AD, Switching Regulator, Buck Controller,, Adjustable, 1.235 to 35V, 500kHz, 8-Pin HSOP-EP Voltage Regulators - Switching Regulators 1.235 to 35V Step-Dn IC, BUCK REG, SMD, 5973, HSOP8 REGULATOR,SWITCH,STEP-DOWN,2A,8PINHSOP DC-DC converter; step down; Uin:4.4÷36V; Uout:1.2÷35V; 2A; SO8 Switching controller IC HSOP-8EP, L5973AD, ST STMicroelectronics 降压 开关稳压器, 可调输出, 1.235 → 35 V, 500 kHz, 8针 HSOP封装 Switching Voltage Regulators 1.235 to 35V Step-Dn |
| Category |
Business
| MOQ | 2000 | Unit Pack | 100 |
| Product Category | Voltage Regulators - Switching Regulators | Standard Package | Rail / Tube |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Part Status | :5973 |
| Rad Hardened | No | ||
Electrical
| Frequency | :500kHz | Efficiency | 90(Typ) % |
| Inductance | 2.3ms | Output Type | Adjustable |
| Power - Rated | 2.25W | Regulator Type | Buck Controller |
| Voltage Rating | 1.235 to 35 V | Line Regulation | 10 mV |
| Load Regulation | 15 mV | Oscillator Type | 500kHz |
| Current - Output | 2A | Voltage - Supply | :36V |
| Number of Outputs | 1 | Voltage Reference | :3.3V |
| Regulator Topology | Step Down | Voltage - Output 4 | 0.4V |
| Switching Regulator | Yes | Frequency - Switching | 500(Typ) kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | 1.24 V ~ 35 V |
| Voltage - Output (Max) | 35 V | Input Logic Level - Low | 2.5μA |
| Power Dissipation (Max) | 2.25W | DC Voltage - Input (Min) | 4 V |
| Voltage - Output (Min/Fixed) | 1.235 V | Voltage - Output 1 (Adj Range) | :35V |
| Voltage - Output (Typ) @ Distance | 57dB | Voltage - Continuous Operating (Max) (MCOV) | :36V |
| Voltage - Output Difference (Typ) @ Distance | :1.235V | ||
Mechanical
| Width | 4mm | Height | 1.25mm |
| Length | 5mm | Weight | 0.000001 |
| Packaging | Tube | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8HSOP EP |
| Package Cooled | HSOP-EP | Material Finish | :- |
| Package Quantity | 100 | Primary Material | TVS |
| Size / Dimension | 5 x 4 x 1.25mm | Number of Positions | 8 |
| Supplier Device Package | 8-HSOP | ||
Product Info
| Spg | 100 | Type | Step Down |
| Base Unit | :5973 | Number of Units | 1 |
| Utilized IC / Part | step down | ||
Environmental
| Operating Temperature | -40 to 150 °C | Usable Temperature Range | -40to+150°C |
Documents & Media
Similar Parts
EVAL5973AD
stmicroelectronics
Evaluation Board For L5973 Series Power Management IC Development Tools L5973AD 2A Step Down A5973 Regulator BRD EVAL BOARD FOR L5973 SERIES Development Kit, Power Management With Evaluation Board for L5973AD
EVAL5973D
stmicroelectronics
L5973D Up To 2.5A Step Down Switching Regulator Evaluation Board Power Management IC Development Tools Eval Brd for L5973D EVAL BOARD FOR L5973 SERIES Development Kit, Power Management With Evaluation Board for L5973D
74456147
Wurth Electronics Inc

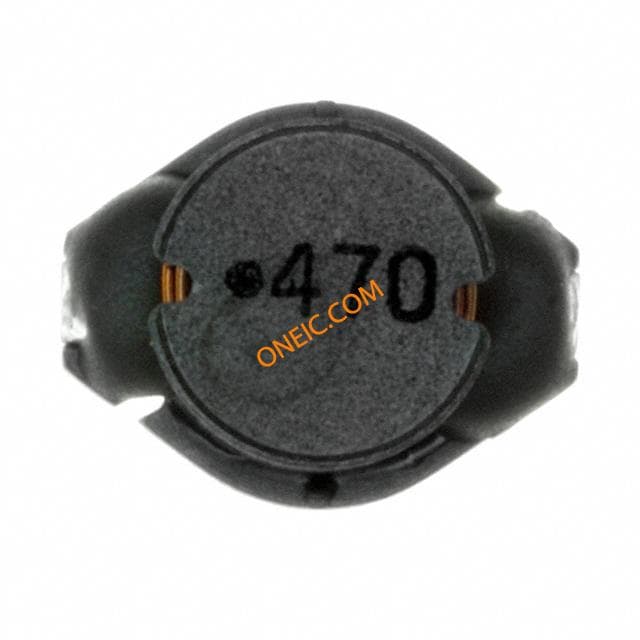

INDUCTOR POWER 47UH 1.8A SMD Power Inductor SMD WE-PD4 L 47.0uH 1.80A CHOKE, SMD, 47UH
