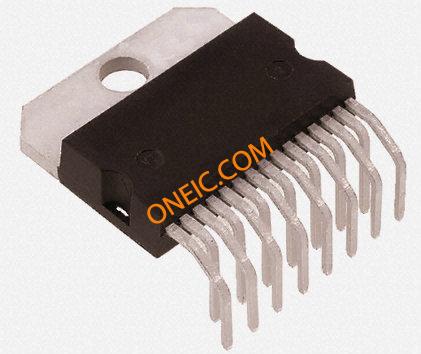

L298HN
| Manufacturer | |
| Description | Dual Full Bridge Motor Driver 15-Pin(15+Tab) MULTIWATT H Tube 2xH-Br 2.5A 46V MULTIWATT THT IC BRIDGE DRIVER PAR 15MULTIWATT L298HN, Full Bridge Motor Driver, Dual Full Bridge Motor Driver, 4.5 to 7V, 15-Pin MULTIWATT H Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge DUAL FULL BRD DRIVER, LW NOISE, 15MWATT DRIVER;46V(MAX.);15-LEADMULTIW;2AO/PHIGHLEVEL;2DRIVERS;-0.3V;7V Driver; MULTIWATT15 STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 4A, 4.5 → 7 V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 500 | Product | Stepper Motor Controllers / Drivers |
| Unit Pack | 25 | Other Names | 497-2940-5 |
| Product Category | Motor / Motion / Ignition Controllers & Drivers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | MULTIWATT H |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Interface | Parallel | Voltage - Load | 4.8 V ~ 46 V |
| Voltage Rating | 46V | Current - Output | 2A |
| Driver Circuitry | Line | Voltage - Supply | 4.5 V ~ 7 V |
| Number of Outputs | 4 | Current - Output 1 | 4A |
| Voltage - Supply (Min) | 7 V | Input Logic Level - Low | -0.3V |
| Power Dissipation (Max) | 25W | Input Logic Level - High | 7V |
| Current - Output High, Low | 2A | ||
Mechanical
| Width | 10.7mm | Height | 5mm |
| Length | 20.2mm | Weight | 0.21 |
| Packaging | Tube | Lead Style | Formed |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :15 |
| Package / Case | 15MULTIWATT H | Package Cooled | MULTIWATT H |
| Material Finish | :- | Package Quantity | MULTIWATT H |
| Size / Dimension | 20.2 x 10.7 x 5mm | Number of Positions | 15 |
| Supplier Device Package | 15-Multiwatt | ||
Product Info
| Spg | 200 | Type | Dual Full Bridge Motor Driver |
| Function | Power Bridge - Logic Driven Power Stage | Base Unit | :298 |
| Matchcode | L298HN | Applications | General Purpose |
| Number of Units | 1 | Number of Drivers | 2 |
| Standard Leadtime | 12 weeks | Utilized IC / Part | :L298HN |
| Motor Type - AC, DC | Brushed DC | Motor Type - Stepper | Bipolar |
| Output Configuration | Full H-Bridge, (2) Dual | Application Specifics | Dual Full Bridge Motor Driver |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -25 to 130 °C |
| Maximum Temperature Limit | 150°C | Operating Temperature - Junction | 130C |
