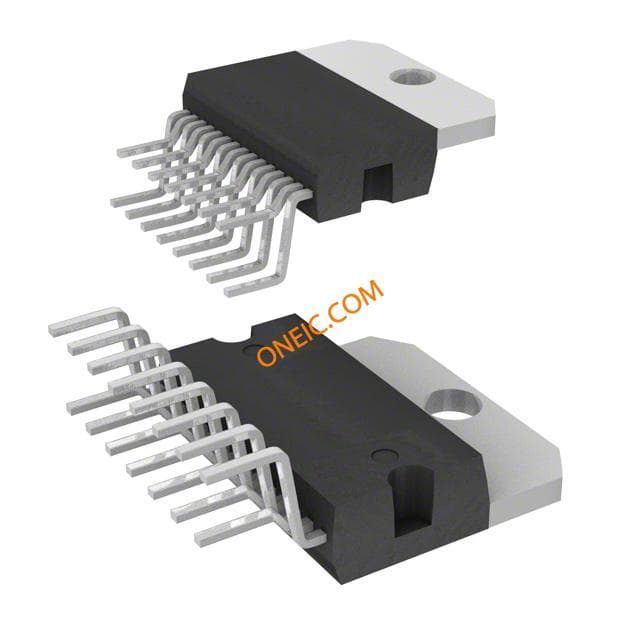

L296
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 9V to 46V 15-Pin(15+Tab) MULTIWATT V SWITCH.REG 4,0A MULTIWATT V IC REG BUCK ADJ 4A MULTIWATT15 L296, DC-DC Converter, Adjustable, 5.1 to 40V, Step Down, 0.2MHz, 15-Pin MULTIWATT V Voltage Regulators - Switching Regulators 5.1 to 40V Step-Down IC, SWITCHING REG 160W, 296 IC,L296 Voltage stabiliser; switched mode, adjustable; 5.1÷40V; 4A; THT Switching Regulator 4 A MULTIWATT 15, L296, ST STMicroelectronics 直流-直流转换器, 降压, 4A, 9 → 46 V输入, 5.1 → 40 V输出, 0.2 MHz, 15针 MULTIWATT V封装 Switching Voltage Regulators 5.1 to 40V Step-Down |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 25 | Unit Pack | 25 |
| Other Names | 497-2939-5 | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Rail / Tube | Factory Pack Quantity | 25 |
| Standard Package Name | MULTIWATT V | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Part Status | :296 |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Reset | OPEN COLL. | Frequency | :100kHz |
| Tolerance | 2% | Efficiency | 90 % |
| Output Type | Adjustable | Converter Type | Step Down |
| Regulator Type | :Step Down (Buck) | Voltage Rating | 5.1 to 40 V |
| Line Regulation | 50 mV | Load Regulation | 45 mV |
| Current - Output | 4 A | Voltage - Supply | 9 to 46 V |
| Number of Outputs | 1 | Power Supply Type | :Switching regulator |
| Regulator Topology | Step Down | Overload Protection | YES |
| Switching Regulator | Yes | Frequency - Switching | 200 kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | 5.1 V ~ 40 V |
| Current - Quiescent (Iq) | 66mA | DC Voltage - Input (Min) | 9 V |
| Voltage - Output (Min/Fixed) | :5.1V | Voltage - Continuous Operating (Max) (MCOV) | :46V |
Mechanical
| Width | 5mm | Height | 10.7mm |
| Length | 19.6mm | Weight | 0.0055 |
| Packaging | TUBE | Tab Width | Tab |
| Lead Style | Formed | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :15 | Package / Case | 15MULTIWATT V |
| Package Cooled | MULTIWATT V | Material Finish | :- |
| Length - Overall | 19.6(Max) | Package Quantity | MULTIWATT V |
| Size / Dimension | 19.6 x 5 x 10.7mm | Number of Positions | 15 |
| Shell Size - Insert | 10.7(Max) | Supplier Device Package | 15-Multiwatt |
Product Info
| Spg | 10 | Mode | ADJ |
| Type | Step Down | Shutdown | YES |
| Base Unit | :296 | Matchcode | L296 |
| Number of Units | 1 | Standard Leadtime | 18 weeks |
| Printed Circuit Board | 15 | ||
Environmental
| Reset Temperature | 4.5V | Operating Temperature | -40 to 150 °C |
Documents & Media
PDF Document
