EVAL6902D
| Manufacturer | |
| Description | L6902D 1A Constant Current Battery Charger Evaluation Board Power Management IC Development Tools 1A Battery Charger L6902D Eval Board EVAL BOARD FOR L6902 SERIES |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | EU RoHS | Not Compliant |
Electrical
| Voltage Rating | 8 V to 25 V | ||
Mechanical
| Packaging | Bulk | ||
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | No | Main Purpose | Power Management, Battery Charger |
| Tool Type Feature | L6902D | Primary Attributes | 8 ~ 25 Vin, 3.3V @ 1A Out |
| RF Family/Standard | L6902D | Utilized IC / Part | L6902 |
| Secondary Attributes | Output Voltage of 1.3 ~ 10V Possible, Thermal Shutdown | ||
Documents & Media
Similar Parts
L6902D
stmicroelectronics
Conv DC-DC Single Step Down 8V to 36V 8-Pin SO N Tube DC-DC 36V 1.0A D SO-8 SMD IC REG BUCK ADJ 1A 8SOIC L6902D, Switching Regulator, Buck Controller, 1A, Adjustable, 1.235 to 34V, 275kHz, 8-Pin SO Voltage Regulators - Switching Regulators 1.235 to 34V Step-Dn SWITCHING REGULATOR, 1A, 34V, 8SO SW.REG.1A275KHZ Voltage stabiliser; adjustable; 1.235÷34V; 1A; SMD; SO8 Switching controller IC SO-8, L6902D, ST STMicroelectronics 降压 开关稳压器, 1A, 可调输出, 1.235 → 34 V, 275 kHz, 8针 SOIC封装 Switching Voltage Regulators 1.235 to 34V Step-Dn
L6902D013TR
stmicroelectronics
Conv DC-DC Single Step Down 8V to 36V 8-Pin SO N T/R DC/DC Switching Regulators 1.235 to 34V Step-Dn DC-DC 36V 1.0A D SO-8 SMD IC REG BUCK ADJ 1A 8SOIC Voltage Regulators - Switching Regulators 1.235 to 34V Step-Dn Switching controller IC SO-8, L6902D013TR, ST Switching Voltage Regulators 1.235 to 34V Step-Dn

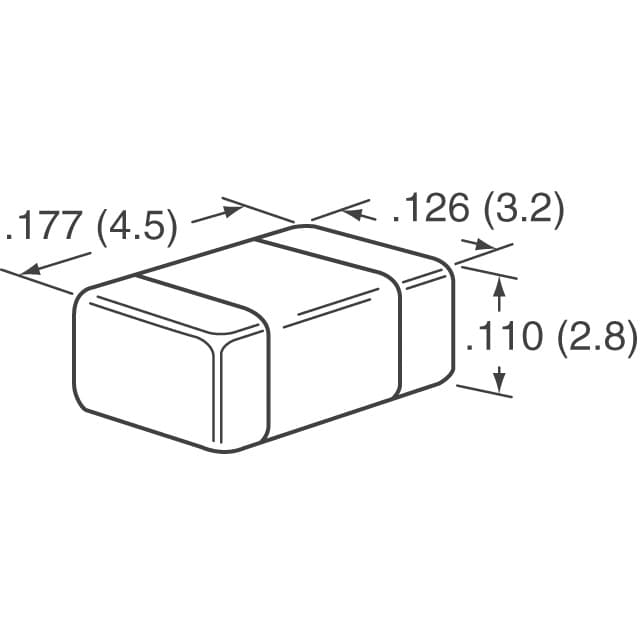

C4532X5R1E106M250KA
TDK Corporation
CAP CER 10UF 25V 20% X5R 1812 C4532X5R1E106M Multilayer Ceramic Capacitors MLCC - SMD/SMT 1812 10uF 25volts X7R 20% Cap Ceramic 10uF 25V X5R 20% SMD 1812 85C Plastic T/R CAPACITOR CERAMIC, 10UF, 25V, X5R, 20%, 1812
XPCGRN-L1-R250-00801
Wolfspeed, Inc.
High Power LEDs - Single Color XLAMP XPC LED GR XLAMP XP-C SERIES LED - GREEN LED XLAMP XP-C GREEN SMD LED, GREEN, XP-C, LUM FLUX 73.9LM
XPCRDO-L1-R250-00401
Wolfspeed, Inc.
High Power LEDs - Single Color XLAMP XPC LED RD/ORANGE XLAMP XP-C SERIES LED - RED-OR LED XLAMP XP-C RED/ORANGE SMD LED, ORANGE, XP-C, LUM FLUX 51.7LM
