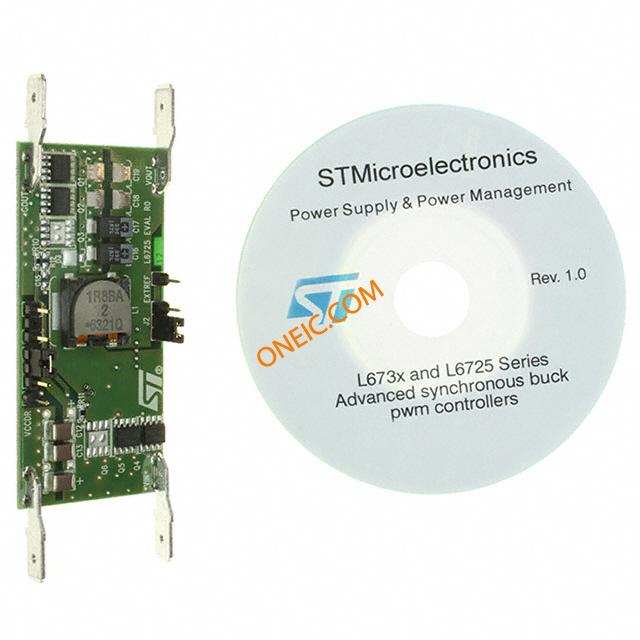

EVAL6725
| Manufacturer | |
| Description | Power Management IC Development Tools EVAL BOARD FOR L6725 EVAL BOARD FOR L6725 |
| Category |
Business
| Product | Power Management Modules | Other Names | 497-5500 |
| Product Category | Power Management IC Development Tools | Standard Package | 34 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | ||
Electrical
| Power - Output | 66W | Voltage Rating | 8 V to 52 V |
| Current - Output | 20A | Regulator Topology | Buck |
| Frequency - Switching | 250kHz | Voltage - Input (Min) | 3.3V |
Mechanical
| Board Thickness | Fully Populated | ||
Product Info
| Type | Motor / Motion Controllers & Drivers | Contents | Board |
| Main Purpose | DC/DC, Step Down | Outputs and Type | 1, Non-Isolated |
| Tool Type Feature | L6208 | Utilized IC / Part | L6725 |
Environmental
| Mechanical Life | Obsolete | ||
Documents & Media
Similar Parts
L6725A
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N Tube DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM SO-16N L6725A, PWM Voltage Mode Controller, 30000mA, 16-Pin SO N Switching Controllers Vltg Mode PWM Controller VOLTAGEMODEPWMCONT.
L6725
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N Tube DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM SO-16N L6725, PWM Voltage Mode Controller, 30000mA, 16-Pin SO N Switching Controllers Vltg Mode PWM Controller
L6725TR
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N T/R DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM 16SOICN Switching Controllers Adjustable Step Down Controller
L6725ATR
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N T/R Switching Converters, Regulators & Controllers Step-Down Controller DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM 16-SOIC Switching Controllers Step-Down Controller
