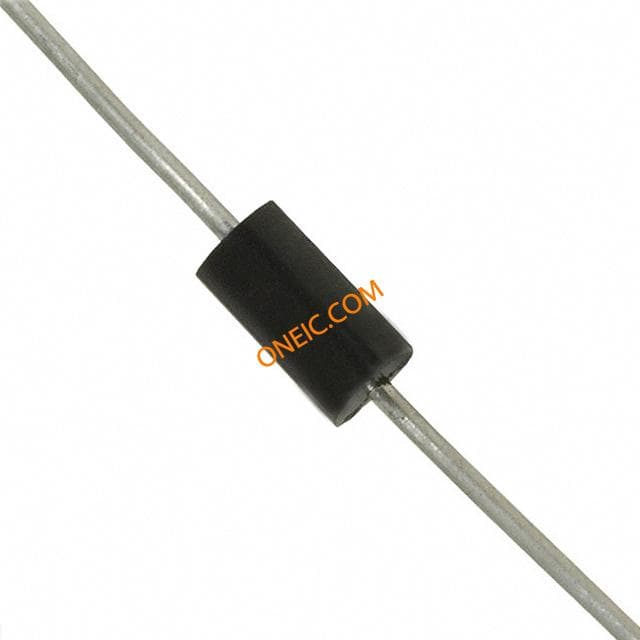

BZW06-15
| Manufacturer | |
| Description | Diode TVS Single Uni-Dir 15.3V 600W 2-Pin DO-15 Ammo 600W AXIAL TRAN TVS DIODE 15.3VWM 32.5VC DO15 TVS Diode Uni-Directional BZW06-15 32.5V, 600W, DO-15 2-Pin TVS Diodes - Transient Voltage Suppressors 600W 15V Unidirect DIODE, TVS, 15V, 600W BZW06-15 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 9000 | Unit Pack | 1000 |
| Other Names | 497-14729-1 | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Ammo Pack | Factory Pack Quantity | 1000 |
| Standard Package Name | DO-204-AC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
| ESD Protection | No | ||
Electrical
| Channels | 1 Channel | Capacitance | 1600 pF |
| TVS Polarity | :Unidirectional | Power - Rated | :600W |
| Current - Surge | 24 A | Current - Output | 1 mA |
| Voltage - Supply | 15.3V | Number of Elements | 1 |
| Power - Peak Pulse | 600 W | Voltage - Clamping | 32.5 V |
| Capacitance @ Vr, F | :1600pF | Diode Configuration | :DO-15 |
| Voltage - Breakdown | 17.1 V | Voltage - Breakover | :17.1V |
| Voltage - Isolation | :15.3V | Power Line Protection | No |
| Voltage - Input (Min) | 15.3 V | Bidirectional Channels | :Unidirectional |
| Voltage - Supply (Min) | 15.3 V | Capacitance @ Frequency | 1600pF @ 1MHz |
| Power Dissipation (Max) | :5W | Unidirectional Channels | 1 |
| Current - Peak Pulse (8/20us) | 123 A | Current - Reverse Leakage @ Vr | 1 uA |
| Current - Peak Pulse (10/1000us) | 123A (8/20µs) | ||
Mechanical
| Length | :7.62mm | Weight | 0.014110 oz |
| Packaging | Ammo | Lead Style | Through Hole |
| Mounting Type | Through Hole | Number of Pins | :2 |
| Package / Case | 2DO-15 | Material Finish | :- |
| Package Quantity | DO-15 | Size / Dimension | 3.53 (Max) mm W x 6.75 (Max) mm L |
| Termination Style | Axial | Number of Positions | 2 |
| Supplier Device Package | DO-15 | ||
Product Info
| Type | Zener | Series | BZW06 |
| Polarity | Unidirectional | Diode Type | :Unidirectional TVS |
| Applications | General Purpose | Configuration | Single |
| Port Direction | Uni-Directional | ||
Environmental
| Operating Temperature | -65 to 175 °C | Operating Temperature - Junction | 175 |
