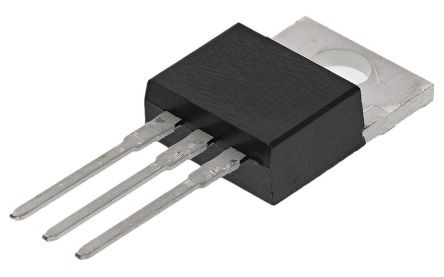

BTA06-600CWRG
| Manufacturer | |
| Description | Thyristor TRIAC 600V 63A 3-Pin(3+Tab) TO-220AB Insulated Tube TRIAC 6A 600V TO220 INSULATED TRIAC ALTERNISTOR 600V TO220AB Triacs 6 Amp 600 Volt Thyristor TRIAC 600V 63A 3-Pin (3+Tab) TO-220AB Isolated Tube STMicroelectronics 三端双向可控硅开关元件, 6A额定, 600V峰值, 35mA 1.3V触发, 3针 TO-220AB封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Unit Pack | 50 |
| Product Category | Triacs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | TO-220 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| U(RRM) | 600V | Current - Surge | 63 A |
| Voltage - Supply | INSULATED | Voltage - On State | 1.55 V |
| Current - Breakover | 63 A | Vce(on) (Max) @ Vge, Ic | 1.55@8.5A V |
| Current - Hold (Ih) (Max) | 35 mA | Current - Off State (Max) | 0.005 mA |
| Voltage - Peak Reverse (Max) | 600 V | Current - Leakage (IS(off)) (Max) | 5 uA |
| Voltage - Forward (Vf) (Max) @ If | 600 | Voltage - Protection Rating (VPR) | 600 V |
| Current - Gate Trigger (Igt) (Max) | 35mA | Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Current - On State (It (RMS)) (Max) | 63 A | Current - Average Rectified (Io) (per Diode) | 6A |
Mechanical
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 3TO-220AB Insulated | Package Quantity | TO-220AB Insulated |
| Number of Positions | 3 | ||
Product Info
| Type | TRIAC | Series | BTA06 |
| Matchcode | BTA06-600CW | Standard Leadtime | 14 weeks |
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | -40 to 125 |
