点击放大查看

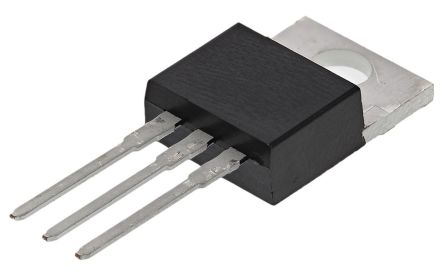

BTA06-600BWRG
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Unit Pack | 50 |
| Product Category | Triacs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | TO-220 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85413000 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| U(RRM) | 600V | Current | :50mA |
| SCR Type | :- | Current - Surge | 63 A |
| Current - Output | 0.005 | Voltage - Supply | INSULATED |
| Voltage - On State | 1.55 V | Current - Breakover | 63 A |
| Voltage - Isolation | :2500V | Voltage - Off State | 600 V |
| Vce(on) (Max) @ Vge, Ic | 1.55@8.5A V | Current - Hold (Ih) (Max) | 50 mA |
| Current - Off State (Max) | 0.005 mA | Gate Charge (Qg) (Max) @ Vgs | 1.3 V |
| Voltage - Peak Reverse (Max) | 600 V | Current - Peak Pulse (8/20us) | 63 A |
| Voltage - On State (Vtm) (Max) | 1.55@8.5A V | Voltage - Reverse Standoff (Typ) | :600V |
| Current - Leakage (IS(off)) (Max) | 5 uA | Voltage - Forward (Vf) (Max) @ If | 600 |
| Voltage - Protection Rating (VPR) | 600 V | Current - Gate Trigger (Igt) (Max) | 50mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | Current - On State (It (RMS)) (Max) | 63 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | :60A | Current - Average Rectified (Io) (per Diode) | 6A |
| Voltage - Output Difference (Typ) @ Distance | :600V | ||
Mechanical
| Weight | 0.002 | Packaging | Tube |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :3 | Package / Case | 3TO-220AB Insulated |
| Package Cooled | TO-220AB Isolated | Material Finish | :- |
| Package Quantity | TO-220AB Insulated | Number of Positions | 3 |
Product Info
| Type | TRIAC | Series | BTA06 |
| Matchcode | BTA06-600BW | Triac Type | :Triac |
| Standard Leadtime | 14 weeks | ||
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | -40 to 125 |
