BTA06-600BRG

Manufacturer	STMicroelectronics N.V.
Description	Thyristor TRIAC 600V 63A 3-Pin(3+Tab) TO-220AB Insulated Tube TRIAC 6A 600V I TRIAC 600V 6A TO220AB Triacs 6 Amp 600 Volt Thyristor TRIAC 600V 63A 3-Pin(3+Tab) TO-220AB Isolated Tube TRIAC, 6A, 600V, TO-220AB Triac; 600V; 6A; 50mA; TO220AB
Category	Discrete Semiconductor ComponentsThyristorsStandard Thyristors

对参数有疑问？问 AI 助手

Business

MOQ	2000	Unit Pack	50
Product Category	Triacs	Standard Package	Rail / Tube
Factory Pack Quantity	50

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85413000	Rad Hardened	No

Electrical

Current	:50mA	SCR Type	:TO-220AB
Slew Rate	400V/μs	Current - Surge	63 A
Transistor Type	triac	Current - Output	0.005
Voltage - On State	1.55 V	Current - Breakover	63 A
Voltage - Off State	600 V	Current Rating (Max)	6A
Vce(on) (Max) @ Vge, Ic	1.55@8.5A V	Current - Hold (Ih) (Max)	50 mA
Current - Off State (Max)	0.005 mA	Gate Charge (Qg) (Max) @ Vgs	1.3 V
Voltage - Peak Reverse (Max)	600 V	Current - Peak Pulse (8/20us)	63 A
Voltage - On State (Vtm) (Max)	1.55@8.5A V	Voltage - Reverse Standoff (Typ)	:600V
Current - Leakage (IS(off)) (Max)	5 uA	Voltage - Protection Rating (VPR)	600 V
Current - Gate Trigger (Igt) (Max)	100 mA	Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - On State (It (RMS)) (Max)	63 A	Current - Non Rep. Surge 50, 60Hz (Itsm)	:60A
Voltage - Output Difference (Typ) @ Distance	:600V

Mechanical

Weight	0.002	Packaging	Tube
Termination	:Through Hole	Mounting Type	Through Hole
Mounting Style	Through Hole	Number of Pins	:3
Package / Case	3TO-220AB Insulated	Package Cooled	TO-220AB Insulated
Material Finish	:-	Package Quantity	50
Number of Positions	3 +Tab

Product Info

Spg	50	Type	TRIAC
Series	BTA06	Triac Type	:Triac
Number of Units	1	Utilized IC / Part	:BTA06-600B

Environmental

Operating Temperature

-40 to 125 °C

Documents & Media

PDF Document

ECOPACK2 Molding Compound 21/Jun/2013

PDF Document

CD00000670.pdf

PDF Document

BT(A,B)06 Series

PDF Document

1723943.pdf

Similar Parts

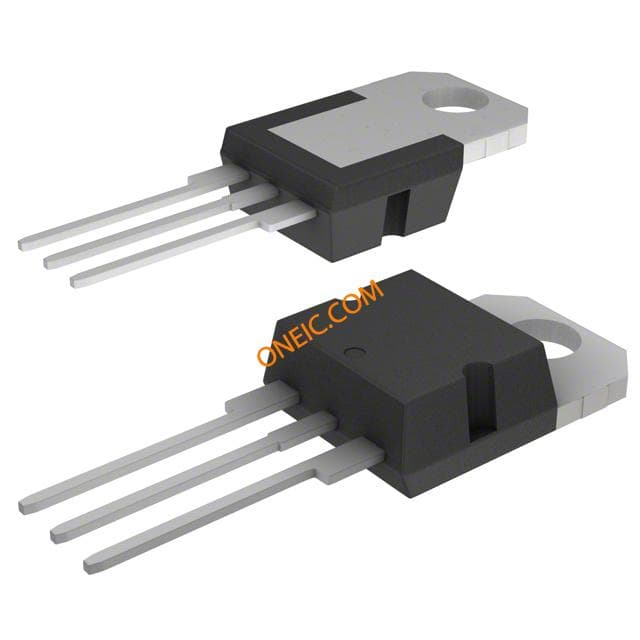

BTA08-600BRG
