PG1113F-TR
| Manufacturer | |
| Description | LED Uni-Color Green 560nm 2-Pin SMD T/R LED GREEN RIGHT ANGLE SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 404-1071-1 | Standard Package | 4,000 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Lamp Output | No | Luminous Flux | 6.4mcd |
| Power - Rated | 70 W | Viewing Angle | 145°, 147° |
| Current - Output | 20mA | Voltage - Supply | 2.1V |
| Wavelength - Peak | 560nm | Number of Elements | 1 |
| Current - Trip (It) | 20 mA | LED Forward Current | 25 mA |
| LED Forward Voltage | 2.8 V | Millicandela Rating | 6.4mcd |
| Wavelength - Dominant | 567nm | Power Dissipation (Max) | 70 |
| Current - Peak Pulse (10/1000us) | 25 | Voltage - Gate Trigger (Vgt) (Max) | 4 V |
Mechanical
| Color | Green | Depth | 1.7 mm |
| Shape | Rectangular | Height | 0.60mm |
| Packaging | Tape and Reel | Lens Style | Rectangular |
| Light Color | Yellow Green | Lens Diameter | 1.7x0.6x0.5 mm |
| Mounting Type | Surface Mount, Right Angle | Mounting Style | Right Angle |
| Package / Case | 0805 (2012 Metric) | Package Cooled | SMD |

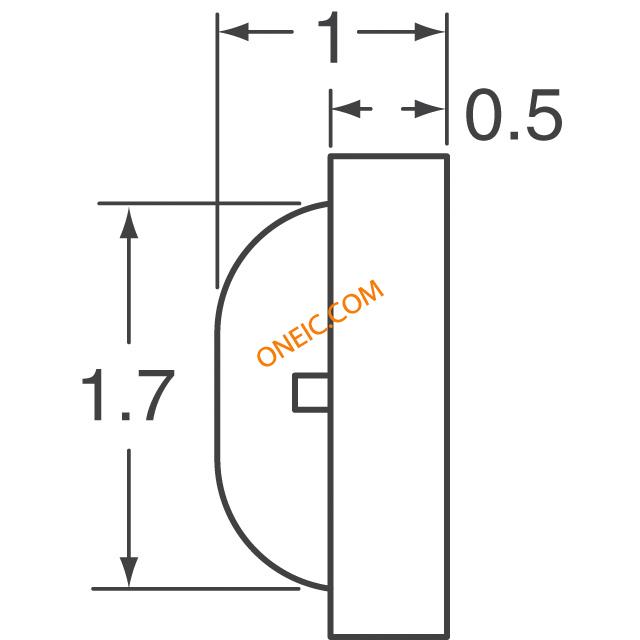

| Lens Style/Size | Rectangle with Domed Top, 1.7mm x 0.6mm | Material - Core | GaP |
| Length - Overall | 2.1 mm | Package Quantity | SMD |

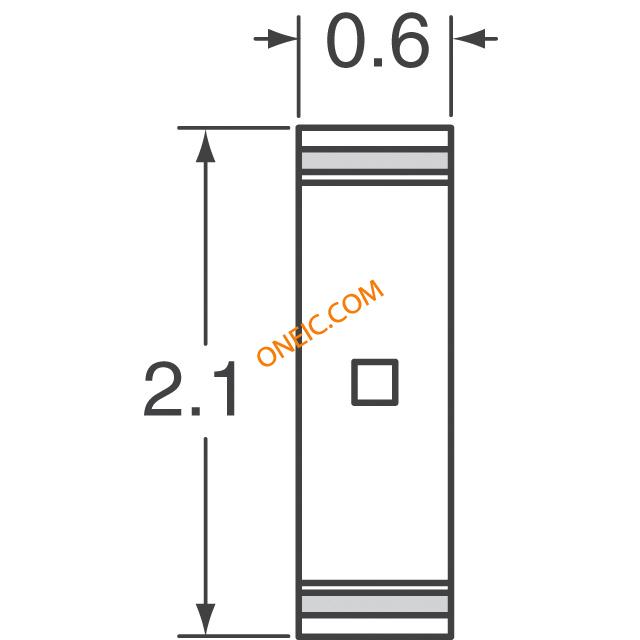

| Size / Dimension | 2.10mm L x 1.00mm W | Number of Positions | 2 |
Product Info
| Type | Uni-Color | DELETED | Compliant |
| Lens Type | Colorless Non Diffused | Main Purpose | Chip LED |
| Number of LEDs | 1 | ||
Environmental
| Operating Temperature | -30C to 85C | Luminous Flux @ Current/Temperature | 6.4mcd |
