MU08-4201
| Manufacturer | |
| Description | LED Uni-Color Yellow 8-Pin LED RECT 14X16 YEL DIFF 8 PIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Current | 60mA | Lamp Output | No |
| Luminous Flux | 40mcd | Power - Rated | 300 W |
| Voltage Rating | 2.1V | Wavelength - Peak | 570nm |
| Number of Elements | 4 | Current - Trip (It) | 20 mA |
| Millicandela Rating | 42mcd | Current Rating (Max) | 60mA |
| Power Dissipation (Max) | 300 | MSCP (Mean Spherical Candle Power) | 42mcd |
Mechanical

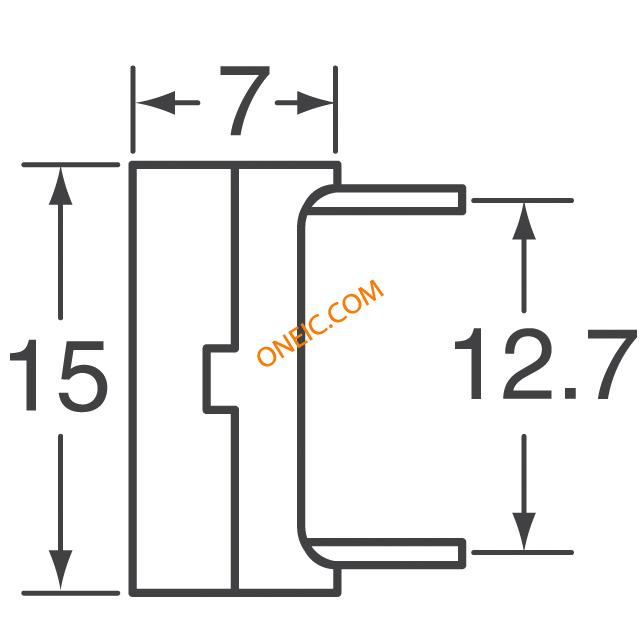

| Color | Yellow | Depth | 15 mm |
| Width | 15 | Height | 7 mm |
| Packaging | Tray | Light Color | Yellow |
| Mounting Type | Through Hole | Lens Style/Size | Rectangle, 14mm x 16mm |

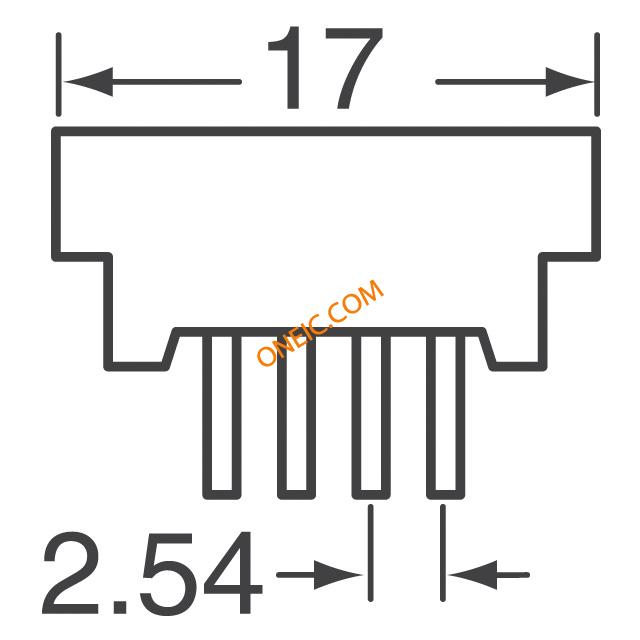

| Length - Overall | 17 mm | Number of Positions | 8 |
| Shell Size - Insert | 7 | ||
Product Info
| Type | Uni-Color | Series | MU08 |
| DELETED | Compliant | Lens Type | Colored |
| Configuration | Bar - Single, DIP | Number of LEDs | 4 |
| Channels per IC | Bar - Single, DIP | Output Configuration | Through Hole |
| Printed Circuit Board | 8 | ||
Environmental
| Luminous Flux @ Current/Temperature | 40mcd | ||
