BG1112H-TR
| Manufacturer | |
| Description | LED Uni-Color Green 555nm 2-Pin SMD T/R LED PURE GREEN 0805 SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 404-1022-1 | Standard Package | 4,000 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Lamp Output | No | Luminous Flux | 2.7mcd |
| Power - Rated | 70 W | Viewing Angle | 165°, 164° |
| Current - Output | 20mA | Voltage - Supply | 2.1V |
| Wavelength - Peak | 555nm | Number of Elements | 1 |
| Current - Trip (It) | 20 mA | LED Forward Current | 25 mA |
| LED Forward Voltage | 2.8 V | Millicandela Rating | 2.7mcd |
| Wavelength - Dominant | 558nm | Power Dissipation (Max) | 70 |
| Current - Peak Pulse (10/1000us) | 25 | Voltage - Gate Trigger (Vgt) (Max) | 4 V |
Mechanical
| Color | Green | Depth | 1.25 mm |
| Shape | Rectangular | Width | 1.25 |

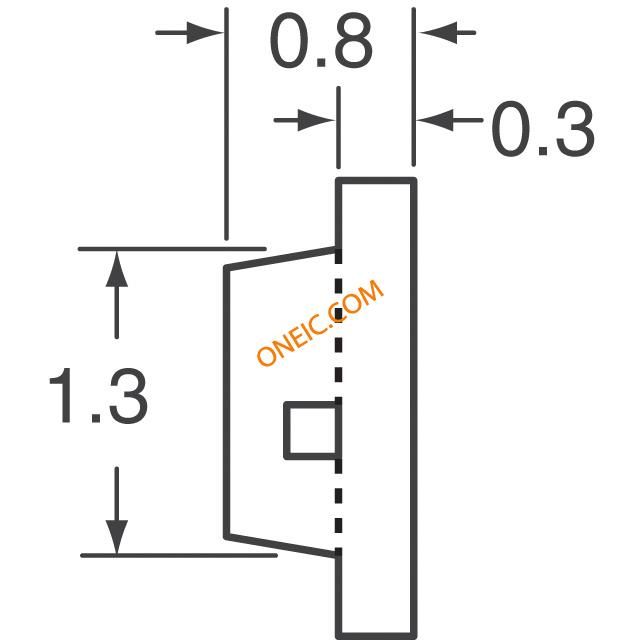

| Height | 0.80mm | Packaging | Tape and Reel |
| Lens Style | Rectangular | Light Color | Green |
| Lens Diameter | 1.3X1.25X0.5 mm | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Package / Case | 0805 (2012 Metric) |
| Package Cooled | SMD | Lens Style/Size | Rectangle with Flat Top, 1.3mm x 1.25mm |
| Material - Core | GaP | Length - Overall | 2 mm |

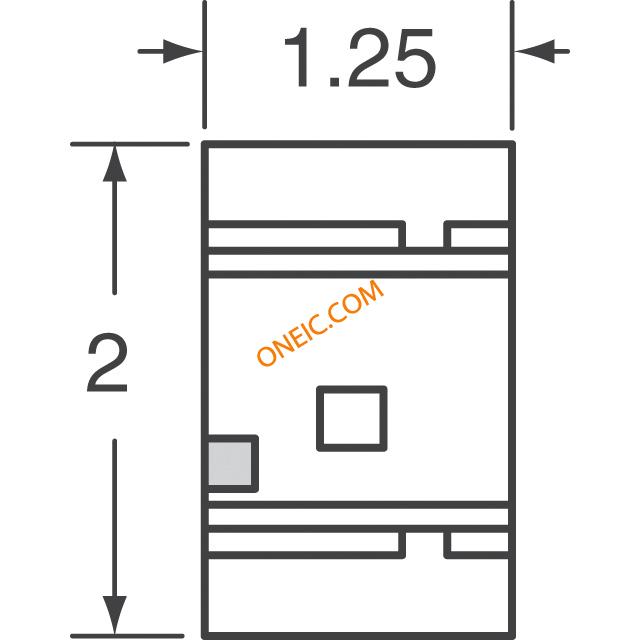

| Package Quantity | SMD | Size / Dimension | 2.00mm L x 1.25mm W |
| Number of Positions | 2 | Shell Size - Insert | 0.8 |
Product Info
| Type | Uni-Color | DELETED | Compliant |
| Lens Type | Colorless Non Diffused | Main Purpose | Chip LED |
| Number of LEDs | 1 | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | -40C to 85C | Luminous Flux @ Current/Temperature | 2.7mcd |
