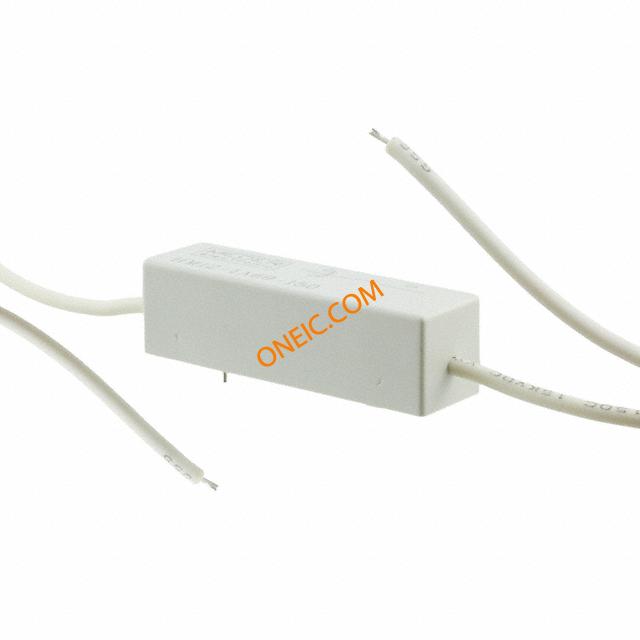

HM12-1A69-150
| Manufacturer | |
| Description | Reed Relays Reed Relay, 1 Form A SPST-NO 12V HiV PCB RELAY REED SPST 3A 12V |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 8412169158 | Standard Package | 12 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Coil Type | Non Latching | Coil Power | 960 mW |
| Coil Current | 80mA | Release Time | 1.5ms |
| Power - Output | 50 W | Coil Resistance | 150 Ohms |
| Voltage - Supply | 12 VDC | Switching Voltage | 10 kVDC |
| Vgs(th) (Max) @ Id | 1 VDC | Diode Configuration | No |
| Current Rating (Max) | 3 A | Vce(on) (Max) @ Vge, Ic | 9 VDC |
| Contact Rating (Current) | 3A | ||
Mechanical
| Packaging | Bulk | Contact Form | 1 Form A (SPST-NO) |
| Mounting Type | Through Hole | Termination Style | PC Pin |
Product Info
| Series | HM | Relay Type | Reed |
Environmental
| Operate Time | 3ms | Mechanical Life | New Product: New from this manufacturer. |
| Operating Temperature | -20°C ~ 70°C | ||
