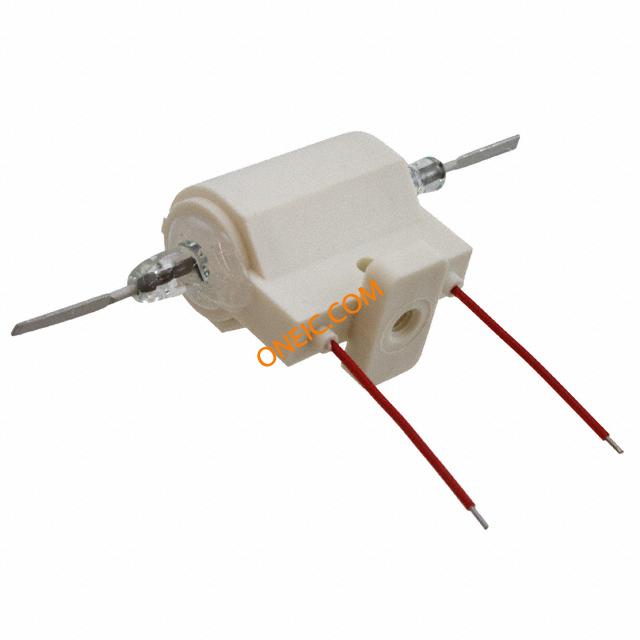

点击放大查看
H24-1A83
| Manufacturer | |
| Description | Reed Relays 1 FORM A SPST-NO 24V HiV 700 OH RELAY REED SPST 3A 24V |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 8512169002 | Standard Package | 12 |
| Factory Pack Quantity | 12 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Coil Type | Non Latching | Coil Power | 822 mW |
| Coil Current | 34.29mA | Release Time | 1.5ms |
| Release Range | 1.5ms | Power - Output | 50 W |
| Coil Resistance | 700 Ohms | Voltage - Supply | 24 VDC |
| Switching Voltage | 7.5 kVDC | Vgs(th) (Max) @ Id | 2 VDC |
| Voltage - Off State | 2 VDC | Current Rating (Max) | 3 A |
| Vce(on) (Max) @ Vge, Ic | 18 VDC | Contact Rating (Current) | 3A |
| Contact Rating @ Voltage | 3A | ||
Mechanical
| Packaging | Bulk | Contact Form | 1 Form A (SPST-NO) |
| Contact Shape | SPST-NO (1 Form A) | Mounting Type | Chassis Mount |
| Operating Force | 3.2ms | Termination Style | Wire Leads |
Product Info
| Series | H | Relay Type | Reed |
Environmental
| Operate Time | 3.2ms | Mechanical Life | New Product: New from this manufacturer. |
| Operating Temperature | -20°C ~ 70°C | ||
