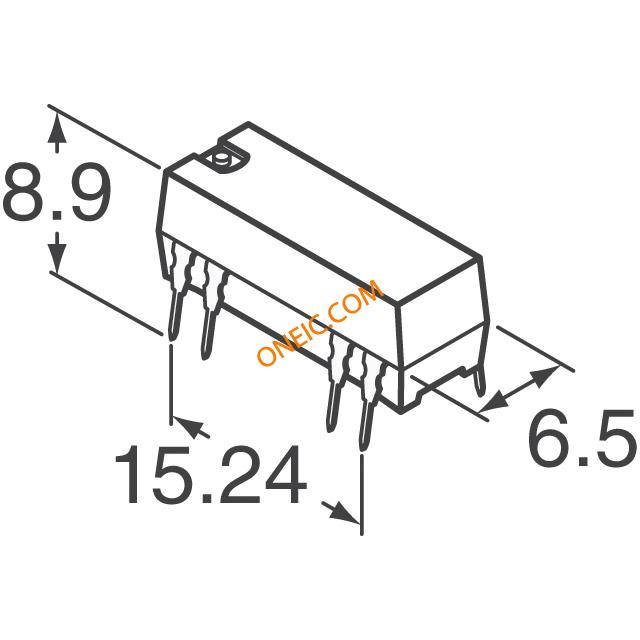

点击放大查看
DIP12-1C90-51L
| Manufacturer | |
| Description | Reed Relays 1 Form C,SPDT-ChgOvr 12V Molded DIP RELAY REED SPDT 500MA 12V |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 3212001151 | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Coil Type | Non Latching | Coil Power | 290 mW |
| Coil Current | 24mA | Release Time | 1.5ms |
| Release Range | 1.5ms | Power - Output | 20 W |
| Coil Resistance | 500 Ohms | Voltage - Supply | 12 VDC |
| Switching Voltage | 175 VDC | Vgs(th) (Max) @ Id | 1.8 VDC |
| Diode Configuration | Yes | Voltage - Off State | 1.8 VDC |
| Current Rating (Max) | 0.5 A | Vce(on) (Max) @ Vge, Ic | 8.4 VDC |
| Contact Rating (Current) | 500mA | Contact Rating @ Voltage | 500mA |
Mechanical
| Packaging | Tube | Contact Form | 1 Form C (SPDT-BM) |
| Contact Shape | SPDT (1 Form C) | Mounting Type | Through Hole |
| Operating Force | 0.7ms | Termination Style | PC Pin |
Product Info
| Series | DIP | Relay Type | Reed |
Environmental
| Operate Time | 0.7ms | Operating Temperature | -20°C ~ 70°C |
