UTS7147P
| Manufacturer | |
| Description | Standard Circular Connector 7P Pin Receptacle Jam Nut Size 14 CONN RCPT 7X1.6 MALE JAM NUT 7 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts connector,plasticcirc,size14,jamnutrecept,for7size16pincont,sealed Panel Mount Plug UTS Trim Trio UTS 6+PEP Male 14, UTS7147P, Souriau Souriau 7路 面板安装 直向 连接器 插座 , 公触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1294 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 30.2 | Capacitance | 3.2 |
| Voltage Rating | 250 V ac | Number of Poles | 6+PE |
| Current Rating (Max) | 13A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 14 | Packaging | Bulk |
| Body Color | 33.9 | Shell Size | 14 |
| Orientation | Keyed | Shell Style | Jam Nut |
| Termination | Crimp | Weight (g): | 25.7 |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle for Male Contacts |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 14-7 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Plastic | Termination Rows | 压接 |
| Termination Style | Crimp Connection | 1st Contact Gender | Male |
| Diameter - Outside | 34.9 | Number of Contacts | 7 |
| Number of Positions | 7 | Shell Size - Insert | 14-7 |
| 1st Connector Gender | Male | Shell Material, Finish | Thermoplastic |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Amplifier Type | 19.3 | ||
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | +105°C |
Documents & Media
Similar Parts
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
UTS6JC147S
Souriau

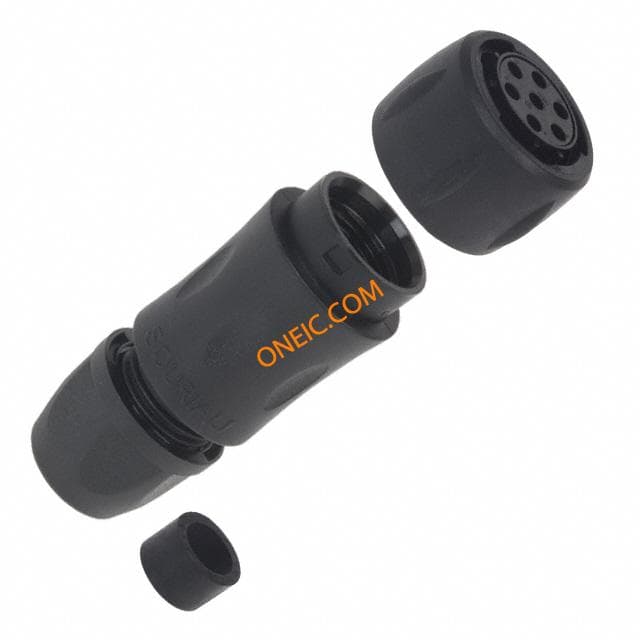

Standard Circular Connector 7P Strt Socket Plug Backshell Size 14 Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN PLUG CABLE 7X1.6 FEMALE 7 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts connector,plasticcirc,size14,strplugw/bkshl,for7size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 6+PEP Female 14, UTS6JC147S, Souriau Souriau 7路 电缆安装 直向 连接器 插头 , 母触点
