UTS712E4S
| Manufacturer | |
| Description | Standard Circular Connector 4P JAM NUT SOCKET RECEPTACLE SIZE 12E CONN RCPT JAM NUT 4POS W/SOCKET CONNECTOR, CIRCULAR, RCPT, 4POS, PANEL Souriau UTS 系列 4路 面板安装 直向 圆形连接器 插座 , 母触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1632 |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 500V | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shell Size | 12 | Orientation | N (Normal) |
| Shell Style | Jam Nut | Termination | Solder Cup |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 12-4 |
| Material - Body | :Thermoplastic | Contact Material | :Copper |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Contact Termination | :Solder |
| Number of Positions | 4 | Shell Size - Insert | 12-4 |
| Shell Material, Finish | Thermoplastic | Contact Finish Thickness | 16µin (0.40µm) |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | :Receptacle | Series | UTS |
| Features | Cap (Cover), Dust | Product Type | Receptacles |
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
Similar Parts
UTS612E4P
Souriau
Standard Circular Connector 4P Size 12 Plug Straight w/ Pin Cont CONN PLUG 4POS W/O BKSHLL W/PIN
UTS12DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 12 CONN RCPT SEALING CAP SIZE 12 UTS RECEPTACLE DUSTCAP - SIZE 12 DUST CAP, RECEPTACLE, SIZE12 connectoraccessory,dustcapforsize12uts-seriesreceptacle Cap for receptacles size 12, UTS12DCG, Souriau
UTS712CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Green CONN RCPT CODING RING SIZE12 GRN RECEPTACLE COLOR CODING SIZE 12 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,green Coding ring for receptacles size 12, UTS712CCRG, Souriau Souriau 绿色 连接器环,适合外壳尺寸 12
UTS712CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Red Connector Accessories Color Coding Ring For Receptacle Red Shell Size 12 CONN RCPT CODING RING SIZE12 RED RECEPTACLE COLOR CODING SIZE 12 - RED CODING RING, RECEPTACLE, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,red Coding ring for receptacles size 12, UTS712CCRR, Souriau
UTS712CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 12, Yellow CONN RCPT CODING RING SIZE12 YEL RECEPTACLE COLOR CODING SIZE 12 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,yellow Coding ring for receptacles size 12, UTS712CCRY, Souriau

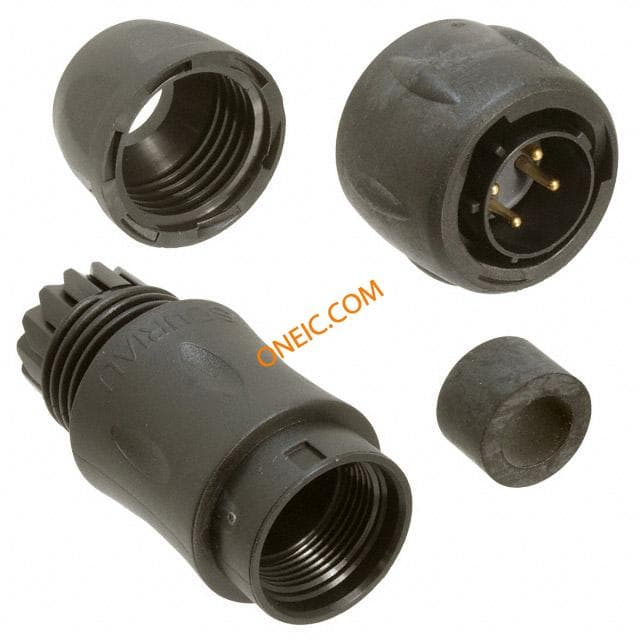

UTS6JC12E4P
