UTS7128S
| Manufacturer | |
| Description | Standard Circular Connector 8P Strt Socket Plug Jam Nut Size 12 CONN RCPT 8X1.6 FEMALE JAM NUT 8 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts connector,plasticcirc,size12,jamnutrecept,for8size16socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 8P Female 12, UTS7128S, Souriau Souriau 8路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1283 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 27 | Capacitance | 3.2 |
| Voltage Rating | 125 V ac | Number of Poles | 8 |
| Current Rating (Max) | 13A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 12 | Packaging | Bulk |
| Body Color | 33.9 | Shell Size | 12 |
| Orientation | Keyed | Shell Style | Jam Nut |
| Termination | Crimp | Weight (g): | 22.5 |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle for Female Contacts |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 12-8 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Plastic | Termination Rows | 压接 |
| Termination Style | Crimp Connection | 1st Contact Gender | Female |
| Diameter - Outside | 31.8 | Number of Contacts | 8 |
| Number of Positions | 8 | Shell Size - Insert | 12-8 |
| 1st Connector Gender | Female | Shell Material, Finish | Thermoplastic |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Amplifier Type | 19.3 | ||
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | +105°C |
Documents & Media
Similar Parts
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UTS12DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 12 CONN RCPT SEALING CAP SIZE 12 UTS RECEPTACLE DUSTCAP - SIZE 12 DUST CAP, RECEPTACLE, SIZE12 connectoraccessory,dustcapforsize12uts-seriesreceptacle Cap for receptacles size 12, UTS12DCG, Souriau
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP
UTS712CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 12, Yellow CONN RCPT CODING RING SIZE12 YEL RECEPTACLE COLOR CODING SIZE 12 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,yellow Coding ring for receptacles size 12, UTS712CCRY, Souriau
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格

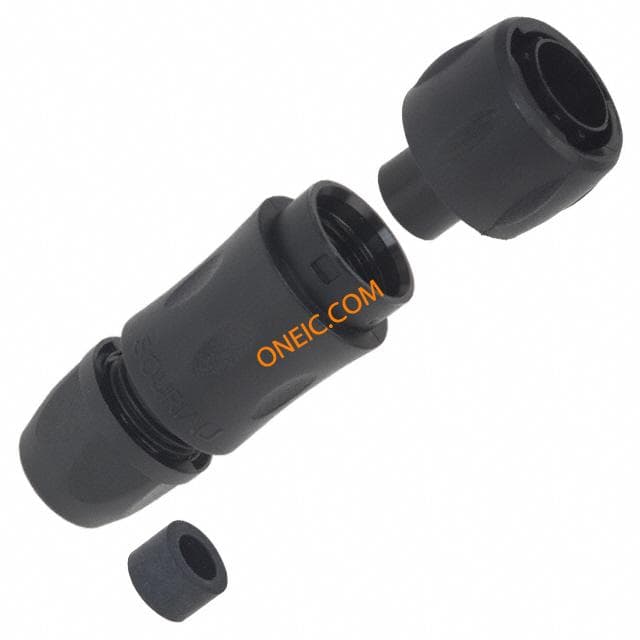

UTS6JC128P
