UTS7124SSCR
| Manufacturer | |
| Description | Standard Circular Connector 4P Strt Socket Plug Jam Nut Size 12 CONN RCPT JAM NUT 4POS F SCREW 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts RECEPTACLE, SCREW, SIZE12, 4WAY, SKT JamNutReceptacle Panel Mount Socket UTS Trim Trio UTS 4P Female 12, UTS7124SSCR, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1536 |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 500V | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.016 | Packaging | Bulk |
| Shell Size | 12 | Orientation | N (Normal) |
| Shell Style | Jam Nut | Termination | Screw |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 12-4 |
| Material - Body | :Thermoplastic | Contact Material | Copper Alloy |
| Termination Style | Screw | 1st Contact Gender | Female |
| Number of Contacts | 4 | Contact Termination | :Screw |
| Number of Positions | 4 | Shell Size - Insert | 12-4 |
| Shell Material, Finish | Thermoplastic | Contact Finish Thickness | 16µin (0.40µm) |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | Female | Series | UTS |
| Features | Cap (Cover), Dust | Adapter Type | JamNut |
| Product Type | Receptacles | ||
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
Similar Parts
UTS12DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 12 CONN RCPT SEALING CAP SIZE 12 UTS RECEPTACLE DUSTCAP - SIZE 12 DUST CAP, RECEPTACLE, SIZE12 connectoraccessory,dustcapforsize12uts-seriesreceptacle Cap for receptacles size 12, UTS12DCG, Souriau
UTS712CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Green CONN RCPT CODING RING SIZE12 GRN RECEPTACLE COLOR CODING SIZE 12 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,green Coding ring for receptacles size 12, UTS712CCRG, Souriau Souriau 绿色 连接器环,适合外壳尺寸 12

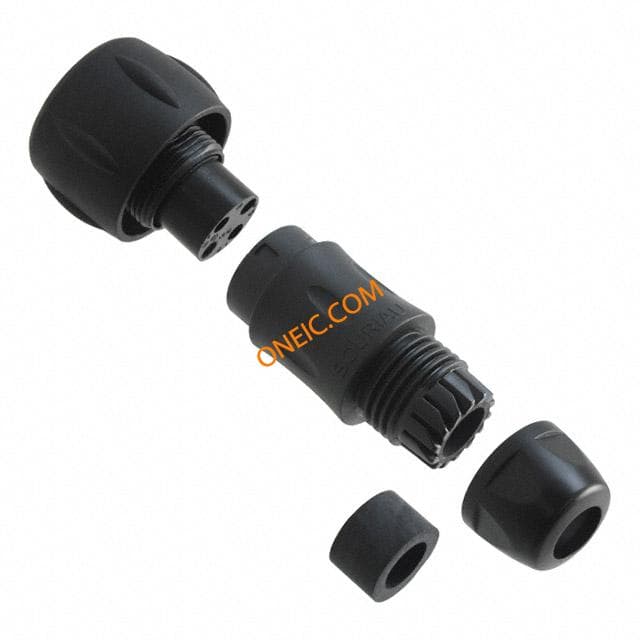

UTS6JC124P
Souriau
Standard Circular Connector 14P Strt Pin Plug Backshell Size 12 CONN PLUG CABLE 4X1.6 MALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts connector,plasticcirc,size12,strplugw/bkshl,for4size16pincont,sealed CONN HSG PLUG 4POS CABLE PIN Coupling Plug UTS Trim Trio UTS 3+PEP Male 12, UTS6JC124P, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 公触点
UTS712CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Red Connector Accessories Color Coding Ring For Receptacle Red Shell Size 12 CONN RCPT CODING RING SIZE12 RED RECEPTACLE COLOR CODING SIZE 12 - RED CODING RING, RECEPTACLE, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,red Coding ring for receptacles size 12, UTS712CCRR, Souriau

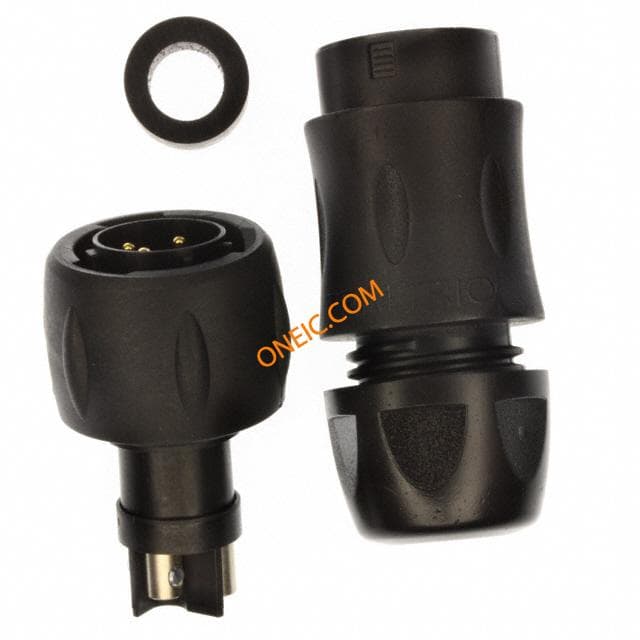

UTS6JC124PSCR
