点击放大查看
UTS7124S
| Manufacturer | |
| Description | Standard Circular Connector 4P Strt Socket Plug Jam Nut Size 12 CONN RCPT 4X1.6 FEMALE JAM NUT 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts connector,plasticcirc,size12,jamnutrecept,for4size16socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 3+PEP Female 12, UTS7124S, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1282 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 27 | Capacitance | 3.2 |
| Voltage Rating | 250 V ac | Number of Poles | 3+PE |
| Current Rating (Max) | 13A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 12 | Packaging | Bulk |
| Body Color | 33.9 | Shell Size | 12 |
| Orientation | Keyed | Shell Style | Jam Nut |
| Termination | Crimp | Weight (g): | 22.5 |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle for Female Contacts |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 12-4 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Plastic | Termination Rows | 压接 |
| Termination Style | Crimp Connection | 1st Contact Gender | Female |
| Diameter - Outside | 31.8 | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 12-4 |
| 1st Connector Gender | Female | Shell Material, Finish | Thermoplastic |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Amplifier Type | 19.3 | ||
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | +105°C |
Documents & Media
Similar Parts
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UTS12DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 12 CONN RCPT SEALING CAP SIZE 12 UTS RECEPTACLE DUSTCAP - SIZE 12 DUST CAP, RECEPTACLE, SIZE12 connectoraccessory,dustcapforsize12uts-seriesreceptacle Cap for receptacles size 12, UTS12DCG, Souriau

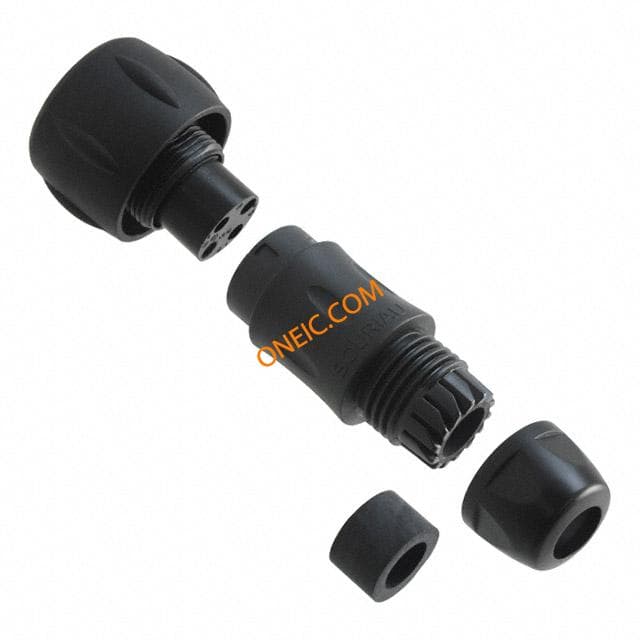

UTS6JC124P
Souriau
Standard Circular Connector 14P Strt Pin Plug Backshell Size 12 CONN PLUG CABLE 4X1.6 MALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts connector,plasticcirc,size12,strplugw/bkshl,for4size16pincont,sealed CONN HSG PLUG 4POS CABLE PIN Coupling Plug UTS Trim Trio UTS 3+PEP Male 12, UTS6JC124P, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 公触点
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP

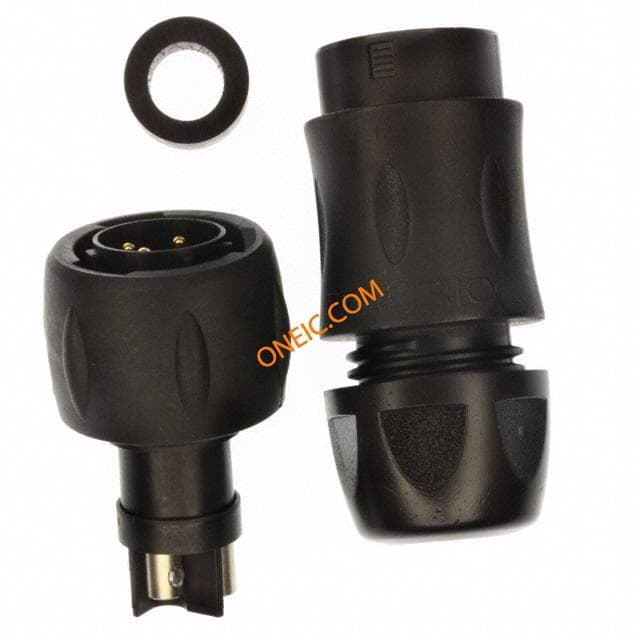

UTS6JC124PSCR
