点击放大查看
UTS7106P
| Manufacturer | |
| Description | Standard Circular Connector 6P Straight Pin Plug Jam Nut Size 10 CONN RCPT 6X1.0 MALE JAM NUT 6 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts RECEPTACLE, JAM NUT, SIZE10, 6WAY, PIN connector,plasticcirc,size10,jamnutrecept,for6size20pincont,sealed Panel Mount Plug UTS Trim Trio UTS 6P Male 10, UTS7106P, Souriau Souriau 6路 面板安装 直向 连接器 插座 , 公触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1290 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :UL, VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Test | :2000V | Voltage Rating | 125 V ac |
| Current Rating (Max) | 5 A | Insulation Resistance | :5000Mohm |
Mechanical
| Weight | 0.01 | Packaging | Bulk |
| Shell Size | 10 | Orientation | Keyed |
| Shell Style | Jam Nut | Termination | Crimp |
| Contact Size | 20 | Contact Type | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle for Male Contacts |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 10-6 |
| Material - Body | :Thermoplastic | 1st Contact Gender | Male |
| Color - Connectors | :Black | Number of Contacts | 6 |
| Panel Cutout Shape | :17.7mm | Number of Positions | 6 |
| Shell Size - Insert | 10-6 | Shell Material, Finish | Thermoplastic |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
Environmental
| Mating Cycles | :250 | NEMA Frame Size | :IP68, IP69K |
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | +105°C |
Documents & Media
Similar Parts
RMW5016K
Souriau
Standard Circular Contacts CIR CON ML SLDR DIP CONT CONTACT PIN SOLDER GOLD SIZE 20
RM20W3K
Souriau
Standard Circular Contacts MALE CRIMP CONTACT AWG 20 CONTACT PIN CRIMP 20-22AWG GOLD PIN CONTACTS SIZE 20 - 0.35-0.5 MM2 CIRCULAR CONTACT, PIN, 22-20 AWG, CRIMP PINCONTACTSSIZE20-0.35-0.5MM2 Male contact 0.35...0.5 mm² Male, RM20W3K, Souriau Souriau UT0W 系列 7.5A 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24W-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 CONTACT PIN CRIMP 24-26AWG GOLD
SM24WL-3S26
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincont,size20,for26-24awgwire Contact;Pin;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSMSer;Gold

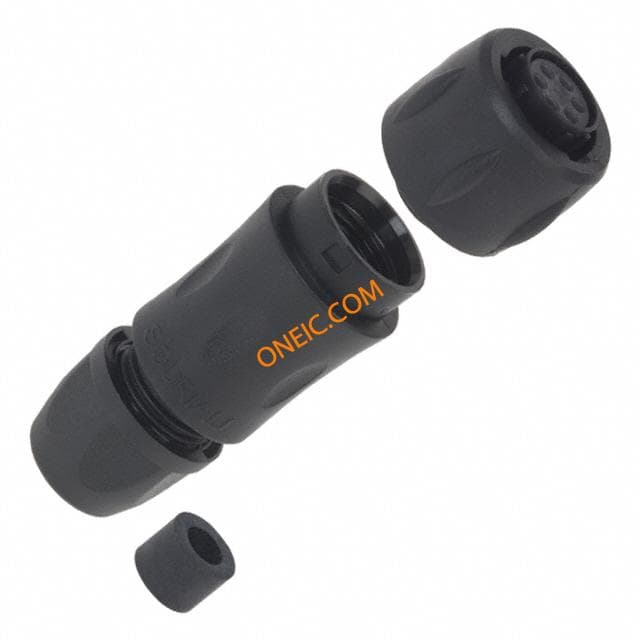

UTS6JC106S
