UTS7103P
| Manufacturer | |
| Description | Standard Circular Connector 3P Straight Pin Plug Jam Nut Size 10 CONN RCPT 3X1.6 MALE JAM NUT 3 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts UTS Series connector,plasticcirc,size10,jamnutrecept,for3size16pincont,sealed Panel Mount Plug UTS Trim Trio UTS 2+PEP Male 10, UTS7103P, Souriau Souriau UTS 系列 3路 面板安装 直向 连接器 插座 , 公触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1288 |
| Product Category | Standard Circular Connector | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 22.2 | Capacitance | 3.2 |
| Voltage Rating | 250 V ac | Number of Poles | 2+PE |
| Current Rating (Max) | 13A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 10 | Packaging | Bulk |
| Body Color | 33.9 | Shell Size | 10 |
| Orientation | Keyed | Shell Style | Jam Nut |
| Termination | Crimp | Weight (g): | 17.7 |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle for Male Contacts |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 10-3 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Plastic | Termination Rows | 压接 |
| Termination Style | Crimp Connection | 1st Contact Gender | Male |
| Diameter - Outside | 27 | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Size - Insert | 10-3 |
| 1st Connector Gender | Male | Shell Material, Finish | Thermoplastic |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Amplifier Type | 19.3 | ||
Environmental
| Seal Rating | IP68, IP69K | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
UTS6JC103S
Souriau

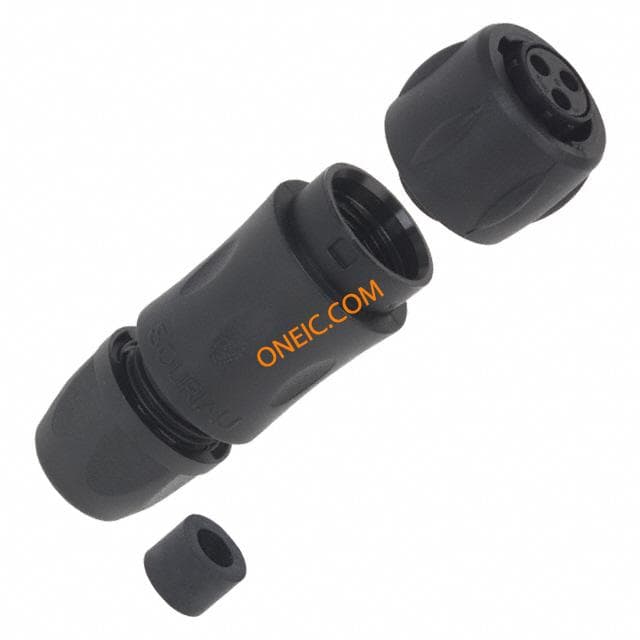

Standard Circular Connector 3P Strt Socket Plug Backshell Size 10 CONN PLUG CABLE 3X1.6 FEMALE 3 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Female Contacts UTS Series PLUG, SIZE 10, 3 WAY, SKT connector,plasticcirc,size10,strplugw/bkshl,for3size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 2+PEP Female 10, UTS6JC103S, Souriau Souriau UTS 系列 3路 电缆安装 直向 连接器 插头 , 母触点
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
UTS10DCG
Souriau

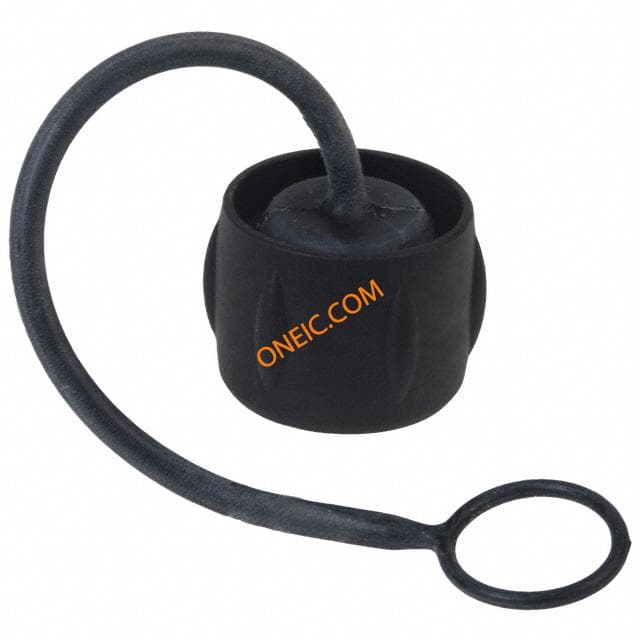

Standard Circular Connector Receptacle Dust Cap Shell Size 10 CONN RCPT SEALING CAP SIZE 10 UTS RECEPTACLE DUSTCAP - SIZE 10 Connector Accessories Receptacle Sealing Cap Shell Size 10 connectoraccessory,dustcapforsize10uts-seriesreceptacle Cap for receptacles size 10, UTS10DCG, Souriau
